Built for the Long Run: The Strudex Tension Panel Advantage

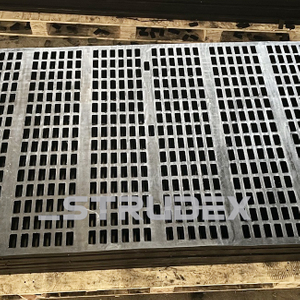

Strudex tension-rail screen panels combine a perforated separation surface with retaining pressure distributed along the panel length. The visible configuration uses elongated openings grouped between solid bands. Its value lies in treating the working surface and rail connection as one component arrangement: the openings control passage, the panel section carries contact, and the rails maintain the intended retained condition on the deck.

Technical Parameters

Distributed retention and the working section

A rail-based arrangement applies holding action along a defined contact rather than treating the entire surface as a single isolated attachment point. The mating profile and panel edge need to place that pressure where the design intends. Correct retention helps preserve the selected working surface during vibration, while the supports beneath it establish the contact needed for the panel section. Rail geometry and support condition are therefore part of the product, not incidental installation details.

Select against the contact that actually consumes the surface

In abrasive screening, the panel receives repeated particle travel as well as any initial impact. These contacts can consume different regions. Opening edges and webs influence the retained product geometry, while an edge or band can reveal a concentrated loading or support condition. The product decision should connect the observed contact to the panel material, section and aperture layout rather than assign every failure to insufficient hardness.

• Progressive surface loss: follow the regions where material travels and the change in opening dimensions. A surface can remain securely retained after its apertures no longer provide the required separation. Useful service includes the grading delivered as the component wears.
• Impact or cutting damage: identify the credible particle size, shape, drop and contact location. An occasional abnormal object and continuous abrasive loading should be described separately, because they do not provide the same evidence about the normal duty of the panel.
• Damage near a retaining region: examine the rail contact and support as well as the component material. Recurring damage at the same location can indicate how the assembly is loaded. A different material may still encounter the same concentrated contact if that condition remains.
• Environmental exposure: describe water, chemicals and relevant temperatures when the material is selected. Abrasive duty does not by itself establish corrosion, chemical or temperature suitability. These requirements belong in the same order specification as the panel geometry.

Preserve the required separation while changing wear behavior

Changing the working section can affect more than wear allowance. The depth and shape of a passage influence how particles encounter an opening, and a different solid layout changes the available area. A material or thickness decision should therefore retain the intended product requirement. This keeps a longer-lasting surface from being accepted merely because it remains intact while the separated fraction has changed.

Define the component as an accepted assembly

1. Agree the aperture fields, solid regions, external outline and section with the chosen material specification. This gives the working surface a reproducible identity instead of relying on the general screen name.
2. Define the mating rail and support geometry, including the intended retained contact. Check that replacement edges and neighboring components preserve that arrangement without forcing a mismatched part into position.
3. Use an equipment-specific installation and inspection procedure. At renewal, inspect the exposed rail and support so a new component is not used to conceal a damaged contact surface.
4. Record whether removal resulted from opening wear, local damage, loss of retention or a changed product duty. These reasons support different decisions about the next panel and should remain distinguishable.

For mining, aggregate and recycling duties, the practical payoff is a surface whose separation and retained condition are evaluated together. A clearly defined configuration also makes purchasing comparisons more meaningful: candidates can be compared for the product they deliver, the contact they withstand and the complete renewal work they require, using a consistent process and operating basis.

Specify the panel and rail drawings, openings, section, selected material and grading objective. Include the feed contact and process environment. These define the actual retained configuration and the evidence needed for acceptance.

Product FAQ

How does the rail arrangement contribute to panel retention?

The tension rails apply retaining pressure along the panel length rather than relying on an isolated contact to control the surface. Correct rail engagement and support remain important. Check the approved assembly and tensioning procedure so the panel is held in its intended working position.

Should the panel material be specified separately from the rail arrangement?

Yes. Identify the selected material and relevant properties on the approved panel specification. Rail retention describes how the surface is held, while material and section determine its response to abrasion, impact and the process environment. Keep both linked to the same drawing for a reproducible replacement.

What can recurring damage near one retaining point indicate?

It warrants inspection of the rail contact, support and local loading as well as the panel material and section. Record where the damage starts and whether it repeats at comparable positions. A material change alone may leave the same concentrated load or defective attachment acting on the replacement.

How should the operating cost of alternative panels be compared?

Use a consistent boundary that includes panel consumption, changeout labor and relevant retaining-part or support renewal. Relate those costs to comparable operating duty and tonnage, with product grading included. Keep exceptional impact events and changed feed conditions visible rather than hiding them in an average service interval.
