Easy-to-install Anti-blocking And High-rebound Rubber Screen

Strudex custom rubber screen panels are developed around the material being screened and the way the deck is mounted. An in-house natural rubber compounding process supports adjustment of the screening surface for the required balance of resilience and wear resistance. Flexible openings help manage pegging and buildup in difficult feed, while dimensional and fixing choices allow the panel to be specified as part of the installed screen system.

  • Customize aperture size, shape and pattern.
  • Select hardness around impact, abrasion and blockage tendency.
  • Define the mounting arrangement, including tensioned hooks or bolted attachment where required.
  • Request rubber performance information for the proposed grade.
Availability:
Quantity:
  • 305x610 305x305

Strudex custom rubber screening panels are configured through three linked choices: rubber compound, aperture geometry and mounting arrangement. In-house natural-rubber mixing supports grade selection for the contact duty, while customized openings and attachment features define the working panel. This approach is useful when a standard replacement repeats the same blockage, impact damage or abrasive wear without addressing how the feed and screening surface interact.

Technical Parameters

Parameter Specification
Screening material Natural rubber compound
Compound preparation In-house rubber mixing
Panel dimensions Customized for the screen installation
Aperture configuration Custom size, shape and pattern
Rubber hardness Customized for the duty
Mounting configurations Welded-hook tensioned or bolted attachment
Cold-condition capability Grades for operation down to −20°C
Material information Rubber performance specification sheet

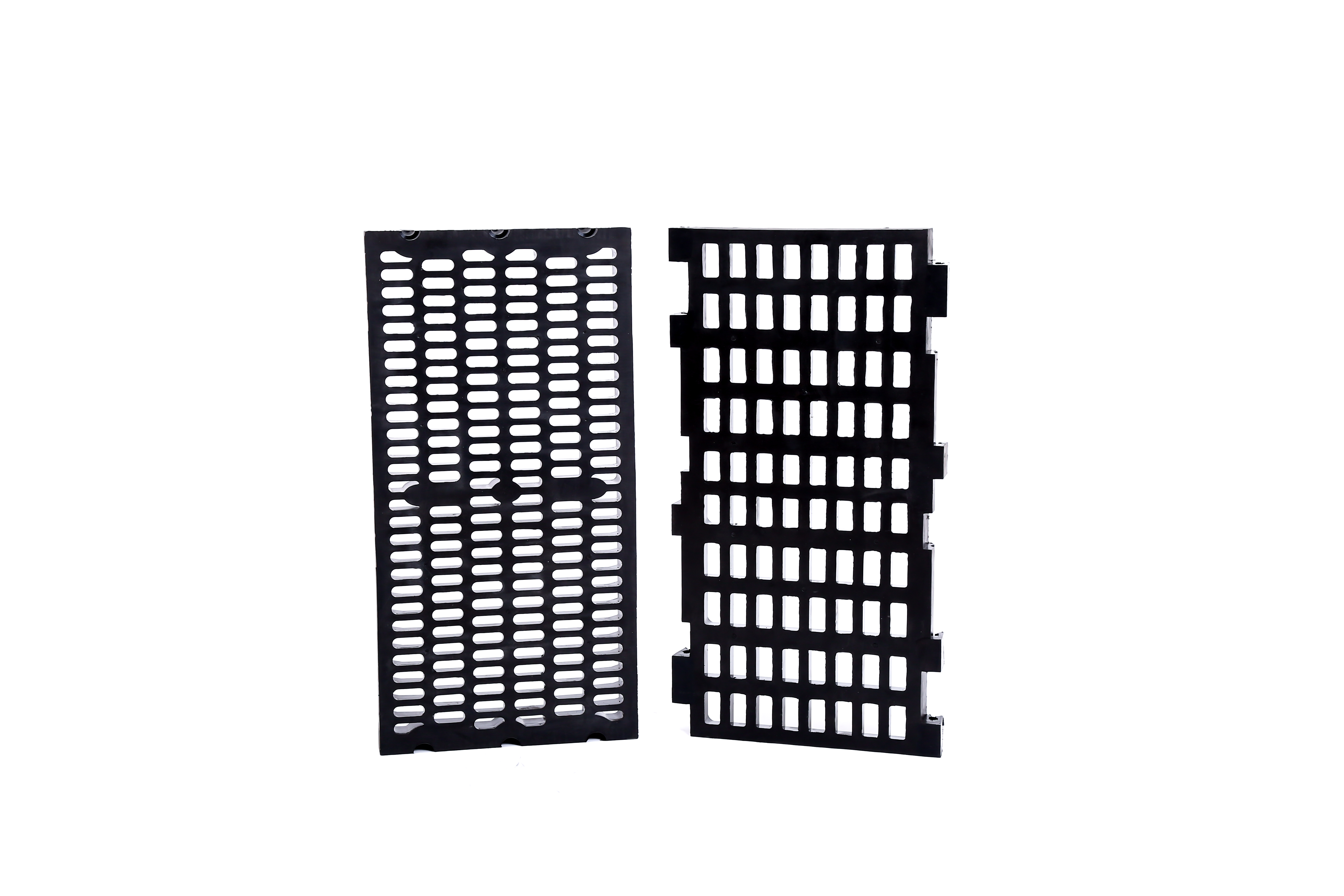

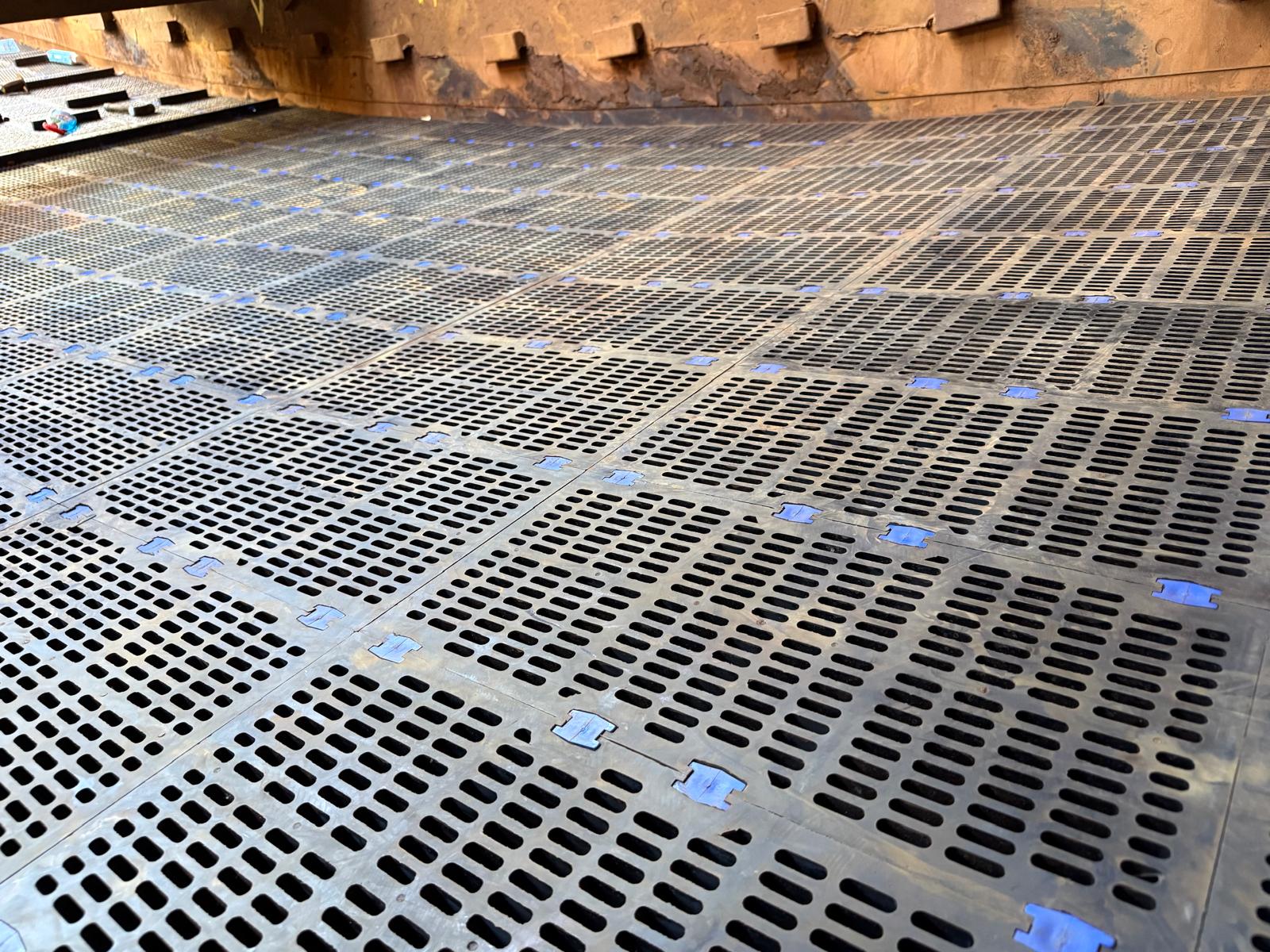

Application-Matched Product Performance 7S7A8709

The compound and the panel solve different parts of the duty

The rubber grade establishes material response; the finished geometry determines where it flexes, carries load and exposes openings. Treating these as separate but linked decisions makes customization more useful. A flexible compound cannot create additional passage where supports obstruct the openings, and a highly open pattern cannot compensate for inadequate rubber around a heavily loaded web. The selected panel should meet the separation requirement and remain mechanically supported.

Design choice Product contribution Tradeoff to evaluate
Rubber formulation and hardness A resilient surface can yield under particle contact and recover as loading changes. Select the response with impact, sliding abrasion, cutting and blockage in view. Hardness is one property, not a direct wear-life scale.
Opening size, shape and pattern The apertures define the routes through which undersize can leave the deck. Particle shape and near-size content influence passage. A geometry that admits more material can also change the product fraction.
Panel section and dimensions The rubber section supplies working material around openings and locates the surface on the screen. Thickness affects passage geometry as well as wear allowance. Review it with the deck profile and the solid material around the holes.
Tensioned or bolted attachment Welded-hook and attachment-hole configurations connect the surface to different retaining arrangements. Choose the connection for the installed supports and load path. Similar external dimensions do not make these mounting systems equivalent.

Identify the contact that limits useful service

  • Impact and deep local damage: describe the maximum credible particle, drop and first contact point. A surface that receives repeated concentrated strikes faces a different duty from one carrying the same tonnage in a distributed bed. Keep the loading location visible when selecting compound and section.
  • Progressive abrasion: examine opening edges and webs as well as average surface thickness. The important outcome is retention of the intended separation. A panel can remain attached after its openings have enlarged enough to alter the product, so wear resistance should be judged with aperture condition.
  • Near-size pegging: identify the particles wedged inside otherwise clear apertures. Rubber movement, opening profile and the geometry of those particles belong in the same review. A change intended to improve release should preserve the required control of the undersize stream.
  • Adhering fines: a coating over the surface calls for attention to moisture, clay and material distribution in addition to the panel. The rubber configuration can be selected for that condition, while washing coverage and loading determine whether material can reach the working openings.

In-house mixing is useful because the material requirement can remain connected to the panel design rather than being treated as an unidentified sheet of rubber. The agreed compound reference should describe the grade used for the order. Cold exposure also belongs in this selection: the product range includes grades intended for operation down to −20°C, with the supplied grade matched to actual ambient and feed conditions.

Use performance data to describe the proposed material

Property group What the buyer can establish
Hardness, tensile behavior and elongation These describe different responses under specified test conditions. Review the method and units with the grade reference; they help characterize the compound rather than establish a permissible rock load.
Tear and abrasion results These support comparison of cutting propagation and controlled abrasive loss when test bases match. A laboratory ranking is useful evidence about the material but should not be converted directly into a guaranteed number of production hours or tonnes.
Temperature and exposure guidance The proposed grade should correspond to the actual environment, including process water or other relevant contact. Retain that scope with the order instead of assuming every custom compound has the same temperature or chemical suitability.

The dimensional specification should make the process choice reproducible. Separate the aperture requirement from the mounting features, and identify thickness, support locations and material-flow direction. This allows a panel to be revised for an actual screening problem while preserving the connection that locates it on the machine. It also prevents a worn sample’s enlarged opening from becoming the unintentional new nominal size.

Evaluate a complete configuration

  1. State the intended improvement in process terms: less pegged area, retention of product grading, improved resistance to a documented contact mode or a more suitable attachment. These are distinct objectives and should remain visible in the comparison.
  2. Compare representative operation with the material grade and drawing revision recorded. Include feed conditions and product streams so changes in moisture or ore blend are not silently attributed to the rubber.
  3. Inspect the finished panel and its support together. A useful configuration combines the chosen material response, working openings and secure installation; a weakness in one part can limit the benefit of the others.

Provide Strudex with the panel drawing, existing connection, required grading and a clear description of the limiting condition. Include representative feed and damage information. The resulting quotation can then define a particular rubber-and-geometry configuration, rather than a generic claim of wear resistance, and acceptance can be based on the agreed material reference and critical panel dimensions.

Product FAQ

What information helps define a custom rubber screening panel?
Start with the required product grading and the present problem, such as pegging, coating, impact damage or aperture wear. Add feed size distribution, moisture, drop height and the deck drawing. These inputs allow the opening pattern, rubber response and mounting interface to be considered together.
Which rubber properties are useful when comparing proposed grades?
Review hardness, tensile behavior, elongation, tear resistance, abrasion results and temperature guidance using comparable test methods and conditions. Each describes a different property. Keep the compound reference linked to the panel drawing; a single favorable laboratory number does not predict the complete panel’s life in ore screening.
Can a hooked panel simply be replaced with a bolted version?
A change of fixing method requires a defined supporting and retaining arrangement. Hooked and bolted panels can depend on different edge features, attachment locations and load paths. Review the screen assembly before ordering the alternative, rather than treating an identical external size as approval for conversion.
How can I check whether a customized opening has solved blockage?
Compare blockage and product grading under representative, recorded feed conditions before and after installation. Distinguish wedged particles from adhering fines, and check for bypass at joints. Increased passage is useful only when the separated streams still meet the required specification and the attachment remains sound.
