Maximize Screening Efficiency with Strudex Trommel Panels

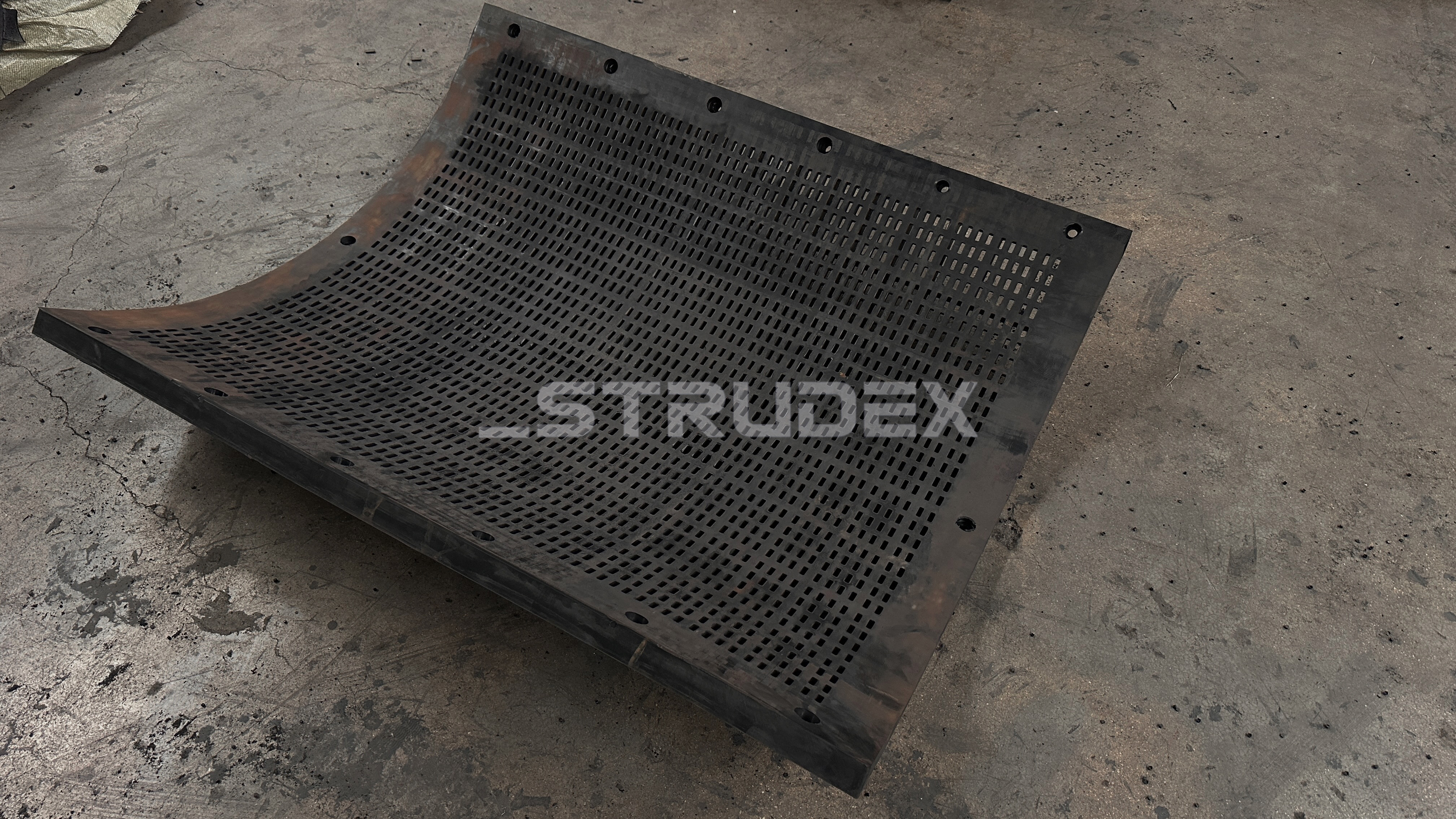

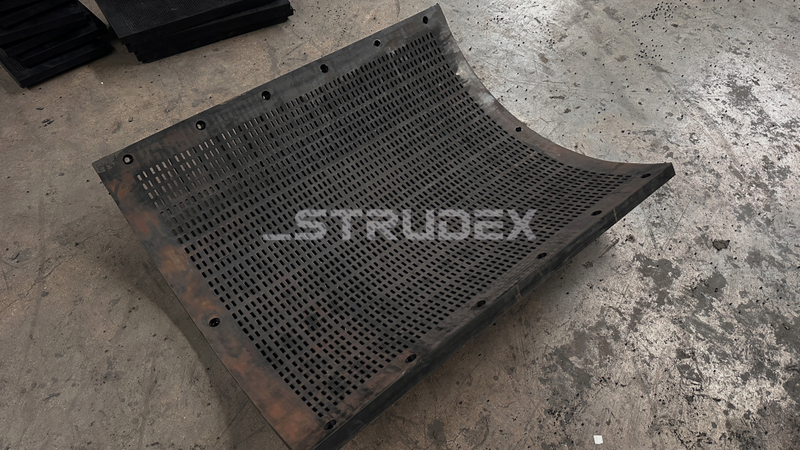

Strudex curved perforated trommel panels provide sectional screening surfaces for a rotating drum. Repeated apertures create the separation route, while the formed outline and perimeter interfaces connect each section to the drum layout. The product specification connects those geometric features with feed characteristics and the intended separated products.

Technical Parameters

Apertures control the intended route through the surface

A particle reaching the panel can pass through a suitable opening or remain inside the drum. Its dimensions and orientation matter, particularly for flat or elongated pieces. The opening’s narrow and long dimensions therefore describe a route rather than an automatic product cut. The panel should be selected with the accepted undersize and retained fractions clearly defined.

Curvature connects the screening surface to the drum

The curved form allows a section to belong to the cylindrical working layout. Drum diameter is a useful starting dimension, but it does not describe every support, edge or mounting location. A panel needs its specified radius or formed profile together with its outline and interface geometry. This is the mechanical link between a replacement section and the existing screening surface.

1. Identify the section’s position in the drum and its relationship to neighbouring panels. Note transitions or end regions where the outline or edge arrangement differs from a repeated central section.
2. Define the opening direction on that installed section, not only on an isolated flat sketch. A formed component needs the aperture pattern and the drum orientation to describe the same working arrangement.
3. Associate the perimeter mounting holes with the intended supports and retention method. Hole presence does not establish the correct hardware or prove that every drum uses an equivalent attachment.

Separate three different reasons for poor sizing

This distinction matters commercially because more material passing through is not necessarily better sizing. Increasing an opening may reduce retained undersize while admitting an unacceptable fraction into the product. The useful comparison combines the two output streams with the condition of the working surface, so the selected geometry supports both passage and product quality.

A sectional format makes the working geometry reproducible

Identifying panels by position allows a worn section to be renewed while keeping the intended pattern and edge relationships. A replacement should reproduce the required new geometry, not the enlarged apertures or distorted outline of a heavily worn sample. Use the selected drawing to distinguish a designed feature from a change that developed in service.

• Normal wear: compare the critical aperture and section geometry with its defined new condition. Substantial remaining surface area does not establish that the product-controlling openings still meet the requirement.
• Local damage: relate the affected position to particle contact, supporting structure and the neighbouring boundaries. A fresh section can restore a surface but cannot establish the condition of retained supports.
• A new feed or product requirement: review the opening pattern deliberately. Keep the change associated with its intended separation objective rather than treating it as an interchangeable repeat order.

A complete configuration for the sizing duty

Specify the material together with the curved section, aperture geometry and mounting requirements. The approved component description connects those features with the particle contact and separation duty. For purchasing, provide the drum position, formed outline, aperture dimensions and direction, mounting arrangement and required products, with the feed characteristics that define the sizing duty.

Product FAQ

Do curved perforated panels all have the same flexibility?

No. Flexibility depends on the selected material, section thickness and support arrangement. The curved form and visible apertures do not establish one material response. Use the approved component specification to define the construction, then consider its behaviour alongside the intended passage geometry and local particle contact.

Will enlarging an aperture always reduce unwanted carryover?

A larger opening changes the separated product as well as the passage available for material. First identify whether carryover comes from blocked openings, insufficient screening opportunity or unsuitable feed conditions. Check representative feed and product samples before changing the opening size or pattern.

Why should aperture wear be measured separately from plate thickness?

The opening can enlarge locally before the rest of the plate appears exhausted, allowing an unwanted coarse fraction into the undersize. Conversely, thickness can decrease while the opening remains within the required geometry. Inspect both the separation-controlling edges and the sections carrying mechanical load.

Can an old panel be used as the only manufacturing reference?

A used sample can help identify the section, but worn holes, distorted curvature and damaged mounting edges should be identified as altered features. Recover the intended geometry from approved equipment or component records where possible. Agree the critical dimensions rather than reproducing damage in the replacement.
