Strudex Impact Beds – Supporting a Distributor in High‑Density, Continuous Loading Applications

Customer: A regional industrial distributor serving mining, quarrying, and bulk material handling customers.

Application Scenario: High‑density, continuous drop zones – specifically crusher discharge chutes areas – where heavy material falls onto conveyor belts. Traditionally, the end‑users relied on impact idlers, but suffered from poor belt support, material spillage, and belt misalignment.

Distributor’s Need: A Reliable Solution for Tough Loading Zones

The distributor had multiple customers operating in demanding environments: crushing plants and coal handling systems. At each site, the loading point faced the same problems:

- Heavy impact from falling material (lump size up to 250 mm, drop height up to 2 metres) caused the belt to sag between impact idlers, leading to uneven support.

- Frequent spillage due to belt flutter and misalignment – material escaped at the edges, creating safety hazards and cleanup costs.

- Difficult maintenance – replacing worn impact idlers required extensive labour and long conveyor shutdowns, which frustrated the end‑users and damaged the distributor’s reputation.

The distributor needed a proven, long‑lasting product that could replace impact idlers, provide uniform support under continuous heavy loading, prevent spillage and mistracking, and be easy to maintain. After evaluating several options, they turned to Strudex for a custom‑engineered impact bed solution.

Strudex Support: Custom Impact Bed with Adjustable Chain System

Strudex engineers worked directly with the distributor and one of their end‑user sites – a high‑output crusher discharge conveyor. We designed and supplied a fully assembled impact bed tailored to the site’s belt width (1200 mm) and material characteristics.

Key Strudex impact bed features delivered:

1. Shock absorption for high‑density continuous loading

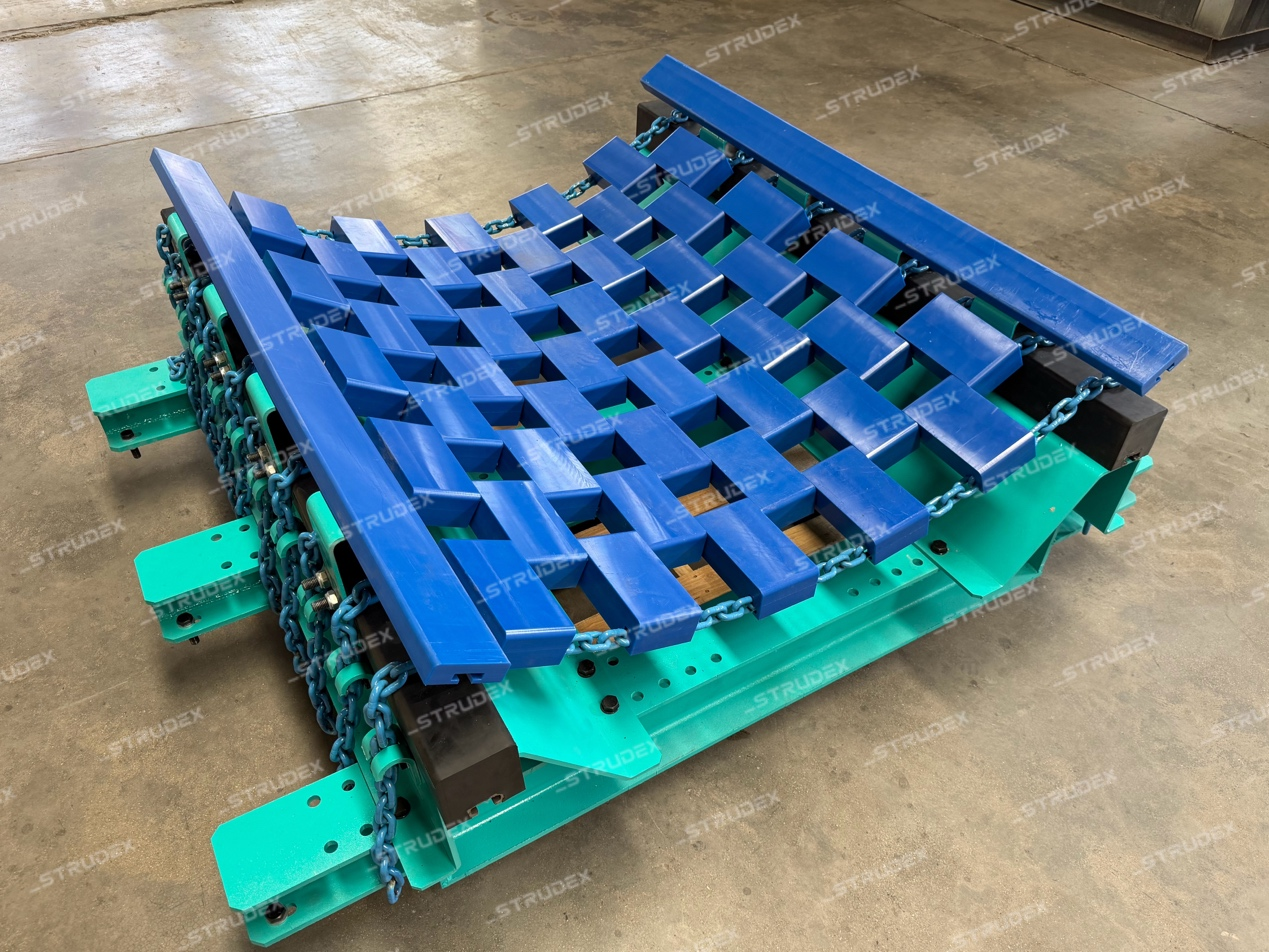

The impact bed uses dense rubber buffers and a reinforced steel frame to absorb the kinetic energy of falling material. Unlike impact idlers that create point loads, our bed provides a continuous, uniform support surface. This eliminates belt sag, prevents material from escaping at the edges, and keeps the belt stable under constant heavy impact.

2. Precise fit via adjustable chain system

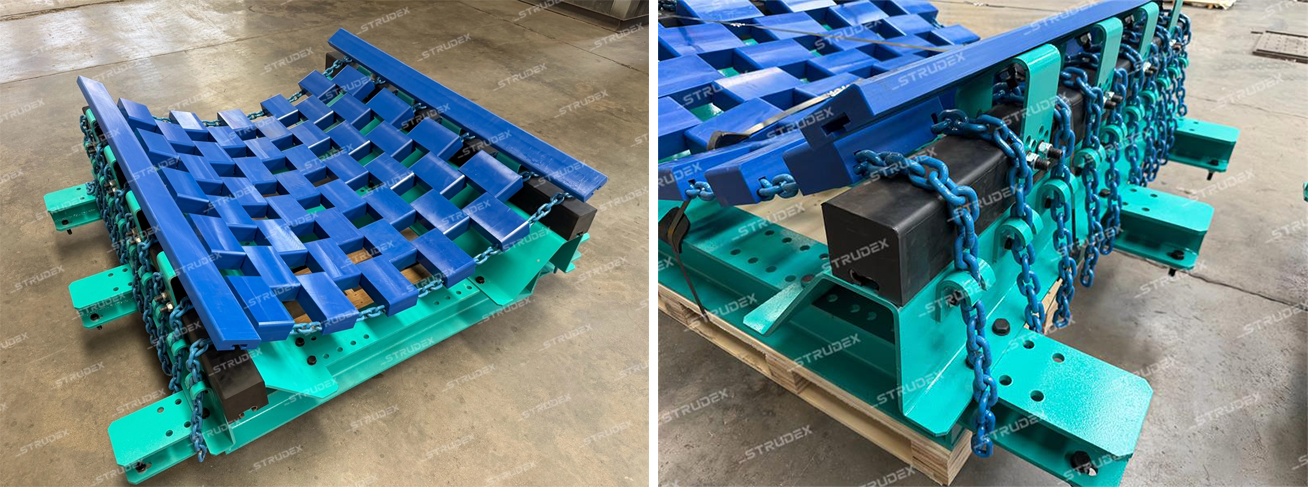

The adjustable chain suspension allows each impact bar to be independently positioned. The distributor’s technician can fine‑tune the chain links to achieve a perfect match with the belt’s trough angle. This precise fit eliminates gaps that cause spillage and ensures the belt runs straight without drifting – directly addressing the customer’s anti‑spillage and anti‑mistracking needs.

3. Easy change maintenance

The same adjustable chain system features a quick‑release pin mechanism. When an impact bar eventually wears after extended service, a single bar can be replaced in minutes without disturbing adjacent bars or dismantling the chute. No special tools or heavy lifting are required, drastically reducing maintenance effort compared to replacing a full set of impact idlers.

Strudex also provided installation drawings and training for the distributor’s sales and support team, enabling them to confidently specify the product for future projects.

Project Value: What the Distributor Gained

After installing the Strudex impact bed at the crusher discharge point, the distributor and their end‑user observed clear benefits:

- Superior impact absorption – The bed fully absorbed the continuous high‑density falling material. Belt flutter was eliminated, and the loading zone ran smoothly even under full crusher throughput.

- Cleaner operation – With precise fit and uniform support, spillage was virtually eliminated. Edge sealing prevented material escape, reducing manual cleaning and improving workplace safety.

- Perfect belt tracking – The adjustable chain system kept the belt perfectly centred. No more mistracking or edge damage, which had been a constant complaint with impact idlers.

- Simplified maintenance – The easy‑change design impressed the end‑user’s maintenance team. What used to take hours (replacing impact idlers) now takes only minutes for a single impact bar. The distributor now offers a genuine maintenance‑saving solution to their customers.

- Distributor confidence – With a field‑proven Strudex impact bed, the distributor has gained a competitive edge. They can now confidently recommend the product to other customers facing similar high‑density loading challenges.

One of the distributor’s project managers commented:

“Our customers were tired of impact idler problems – spillage, mistracking, and hard replacement work. The Strudex impact bed solved all of that. The adjustable chain system gives a perfect fit, and changing bars is incredibly fast. This product has become a key part of our conveyor solutions portfolio.”

Conclusion

For distributors serving industries with high‑density, continuous loading points – such as crusher discharges and silo unloading areas – the Strudex impact bed offers a clear upgrade over traditional impact idlers. By combining shock absorption, precise fit through an adjustable chain system, and easy‑change maintenance, Strudex delivers cleaner, more reliable, and lower‑effort operation. The distributor gains a proven solution that builds customer trust and drives repeat business.
