The Materials Used in SAG Mill Liners And Their Performance

SAG (Semi-Autogenous Grinding) mills are essential equipment in the mining industry, designed for the purpose of reducing large rocks into smaller, manageable sizes. The mills operate with a combination of grinding media (balls or pebbles) and the ore itself, using a rotating drum. The efficiency of these mills is highly dependent on the performance of the liners that protect the interior surface of the mill shell.

SAG mill liners serve several purposes, including protecting the mill from wear and tear, optimizing mill performance, and influencing the efficiency of the milling process. Selecting the right materials for SAG mill liners is critical to achieving optimal results. In this article, we will explore the various materials used in SAG mill liners, how they affect performance, and the factors to consider when choosing the best material for specific mill applications.

1. What are SAG Mill Liners?

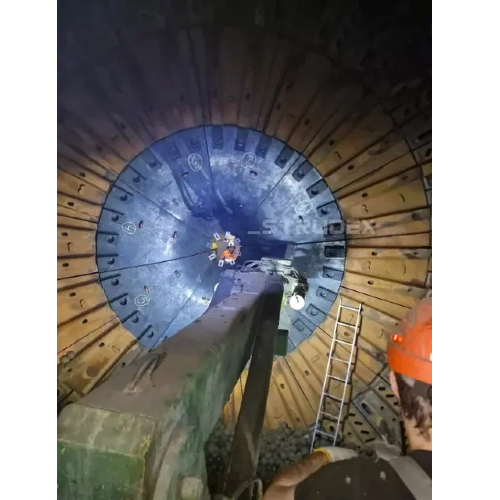

SAG mill liners are large, durable components made from various materials designed to line the interior of the mill shell. These liners serve to protect the mill shell from the mechanical wear caused by the grinding action and provide an essential role in the overall grinding process. They also help in improving the efficiency of the milling operation by providing a more controlled motion of the grinding media.

The primary functions of SAG mill liners include:

• Protection of Mill Shell: Prevents direct contact between the grinding media and the mill shell, reducing the risk of damage.

• Enhancement of Mill Efficiency: Properly designed liners can enhance the tumbling action of the grinding media, which helps in achieving better ore reduction and energy efficiency.

• Distribution of Forces: Liners help in evenly distributing the mechanical forces within the mill, thus reducing uneven wear patterns.

2. Key Materials Used in SAG Mill Liners

The materials used in SAG mill liners are crucial in determining the longevity, efficiency, and performance of the mill. There are several materials commonly used for SAG mill liners, each with distinct advantages and applications. The following section outlines the main materials and their characteristics.

2.1 High Chrome Steel

High Chrome Steel is one of the most widely used materials for SAG mill liners due to its excellent wear resistance and hardness. It is made by alloying steel with a high percentage of chromium (usually above 10%).

Key Characteristics:

• High Wear Resistance: High chrome content significantly increases the wear resistance of the liner, making it suitable for high-impact environments.

• Hardness: Provides high hardness, which is essential for resisting the grinding forces within the mill.

• Heat Treatment: High chrome steel liners are usually heat-treated to improve their hardness and wear resistance.

• Applications: High chrome steel is typically used in heavy-duty mills processing hard ores, where resistance to both impact and abrasion is necessary.

2.2 Manganese Steel

Manganese Steel is another common material used in SAG mill liners. It is known for its excellent toughness and ability to withstand heavy impact.

Key Characteristics:

• Ductility: Manganese steel is highly ductile, which allows it to absorb shocks and impacts without cracking.

• Impact Resistance: It has superior impact resistance, making it ideal for applications where heavy impact forces are common.

• Work Hardening: Manganese steel tends to work harden when subjected to repeated impact, which improves its wear properties.

• Applications: Manganese steel is typically used in mills that process ores with high impact forces and where the liner needs to withstand shock loading.

2.3 Rubber Liners

Rubber liners are made from elastomeric materials that offer several benefits over traditional steel liners. They are often used in mills where noise reduction and reduced abrasion are desired.

Key Characteristics:

• Abrasion Resistance: Rubber liners are highly resistant to abrasion and can withstand moderate impact forces.

• Noise Reduction: Rubber is much quieter than metal, reducing the noise levels in the mill during operation.

• Corrosion Resistance: Rubber is naturally resistant to corrosion from chemicals and moisture.

• Applications: Rubber liners are typically used in mills where the ore is not highly abrasive, and where noise reduction is a concern. They are also useful in mills processing ores in corrosive environments.

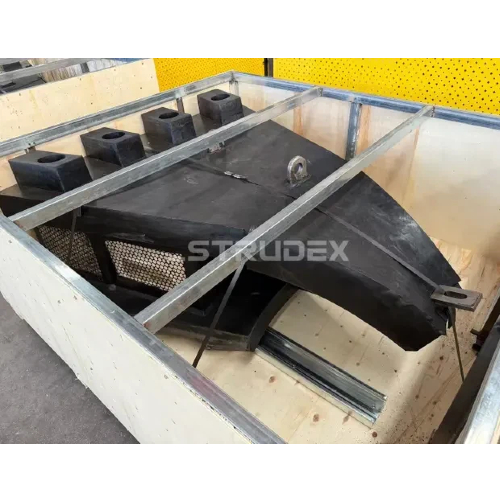

2.4 Composites (Rubber + Steel)

Composite liners are a combination of rubber and steel. These liners aim to combine the best qualities of both materials: the impact resistance of steel and the abrasion resistance and flexibility of rubber.

Key Characteristics:

• Combination of Properties: Rubber provides flexibility and noise reduction, while steel provides additional strength and wear resistance.

• Cost-Effectiveness: Composite liners are often more cost-effective than using steel or rubber alone.

• Durability: They offer a balance of durability and cost efficiency, making them suitable for a variety of ore types.

• Applications: Composite liners are widely used in medium-to-heavy-duty mills where both impact resistance and wear resistance are important.

2.5 Other Specialized Materials (e.g., Ni-hard Alloys)

Ni-hard alloys are a type of white cast iron that contains high levels of nickel and chromium. These materials are used in extreme wear environments.

Key Characteristics:

• Exceptional Wear Resistance: Ni-hard alloys are highly resistant to wear and are often used in mills with extremely abrasive ores.

• Heat Resistance: These alloys can withstand high temperatures, making them suitable for high-temperature environments.

• Strength: Ni-hard alloys are strong and durable, offering extended liner life.

• Applications: Ni-hard alloys are used in mills processing ores with high abrasion and high temperatures, where other materials may wear out too quickly.

3. Performance Factors Influenced by Material Choice

The material chosen for SAG mill liners has a significant impact on various performance factors. Below, we discuss the primary factors influenced by material selection.

3.1 Wear Resistance

Wear resistance is one of the most critical factors in SAG mill liner selection. The material needs to withstand continuous abrasion from both the grinding media and the ore being processed.

Materials with High Wear Resistance:

High chrome steel

Ni-hard alloys

Composite liners

Materials with Moderate Wear Resistance:

Manganese steel

Rubber liners

3.2 Impact Resistance

SAG mills subject liners to repeated impacts, particularly when processing hard ores. The material must absorb these impacts without cracking or breaking.

Impact-Resistant Materials:

Manganese steel

Composite liners

Less Impact-Resistant Materials:

Rubber liners (although they can absorb some impact, they are generally used in lower-impact environments)

3.3 Corrosion Resistance

Corrosion resistance is vital when dealing with ores that may contain acids or other corrosive agents.

Corrosion-Resistant Materials:

Rubber liners

Ni-hard alloys

3.4 Thermal Resistance

Thermal resistance is necessary in mills that operate under high temperatures. Certain materials can withstand temperature fluctuations better than others.

Thermally Resistant Materials:

Ni-hard alloys

High chrome steel

4. Selecting the Right Material for SAG Mill Liners

Choosing the right material for SAG mill liners depends on several factors, including:

• Ore Type: Different ores cause varying levels of abrasion and impact, which influence the choice of material.

• Mill Conditions: The operational conditions of the mill, such as temperature and moisture, play a role in material selection.

• Wear Patterns: If the mill experiences a high level of abrasive wear, materials like high chrome steel or Ni-hard alloys are ideal.

• Cost vs. Performance: Balancing performance and cost is essential when selecting materials. Rubber liners may be more cost-effective for certain applications, while composite liners offer a middle ground between performance and cost.

Material Selection Criteria:

5. How Material Choice Affects the Life Cycle of SAG Mill Liners

The life cycle of SAG mill liners is directly influenced by the material used. High wear and impact-resistant materials, such as high chrome steel and Ni-hard alloys, tend to last longer, requiring fewer replacements and reducing downtime. Rubber and composite liners may have shorter life spans but are useful in specific applications where other factors like cost and noise reduction are more important.

By choosing the appropriate material, mining operations can reduce overall maintenance costs, improve mill efficiency, and extend the lifespan of the equipment.

6. Conclusion

In conclusion, selecting the right material for SAG mill liners is essential for optimizing mill performance, reducing operational costs, and extending the lifespan of your equipment. By understanding the key properties and applications of materials such as high chrome steel, manganese steel, rubber, composite liners, and Ni-hard alloys, you can make an informed choice based on your specific milling conditions. Factors like wear resistance, impact resistance, and cost-effectiveness are crucial to maximizing efficiency and boosting profitability in mining operations.

At Strudex Tech, we offer a range of high-quality SAG mill liners designed to meet your unique operational needs. Our team of experts can assist you in selecting the best materials to enhance your milling processes and ensure long-lasting performance. Contact us today to learn how we can help optimize your mill operations and improve overall productivity. Let us support you in achieving a more efficient and cost-effective milling solution.

7. FAQ

Q1: What material is best for SAG mill liners?

The best material depends on the specific conditions of the SAG mill, including the type of ore being processed and the expected wear patterns. High chrome steel and Ni-hard alloys are ideal for heavy-duty operations, while rubber liners are best for quieter, less abrasive environments.

Q2: How long do SAG mill liners last?

The lifespan of SAG mill liners depends on factors like material selection, mill conditions, and maintenance. High wear-resistant materials tend to last longer and require fewer replacements.

Q3: Can rubber liners be used in all SAG mills?

Rubber liners are suitable for lower-impact and less abrasive applications. They are ideal for reducing noise and handling mild materials but may not be durable enough for mills processing harder ores.

Q4: How do composite liners perform in SAG mills?

Composite liners combine the best properties of rubber and steel, providing good impact resistance, wear resistance, and noise reduction. They are suitable for mills where both durability and cost-efficiency are important.

Q5: What are the signs that SAG mill liners need to be replaced?

Signs that SAG mill liners need replacement include excessive wear, uneven wear patterns, reduced mill efficiency, and increased vibration or noise during operation.
