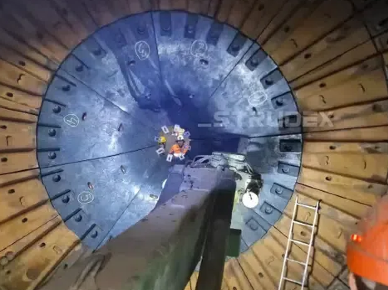

Mill liners serve multiple functions in a grinding mill. Primarily, they protect the mill shell from wear caused by the continuous impact and abrasion of grinding media and ore. Without liners, the steel shell would quickly degrade, leading to costly repairs and downtime.
In addition to protection, liners directly influence the motion of grinding media. By shaping the trajectory of balls and ore particles, liners control the impact forces and cascading patterns inside the mill. This, in turn, affects the efficiency of particle breakage and the energy required for grinding. Well-designed liners ensure that grinding media lift adequately before cascading, maximizing the impact energy transferred to the ore and reducing energy wastage.
Grinding mills are among the largest energy consumers in mineral processing operations. A significant portion of this energy is used to overcome internal friction, move grinding media, and break down ore particles. Inefficient grinding processes not only increase energy costs but also reduce throughput and product quality.
Mill liners impact energy consumption in several ways. If liners are worn, misaligned, or poorly designed, grinding media motion becomes erratic, causing more energy to be used without corresponding increases in particle breakage. Conversely, properly designed and maintained liners optimize media motion, reduce slippage, and ensure that most of the energy is applied directly to grinding the ore rather than being lost as heat or vibration.
The material of the mill liners plays a crucial role in energy consumption.

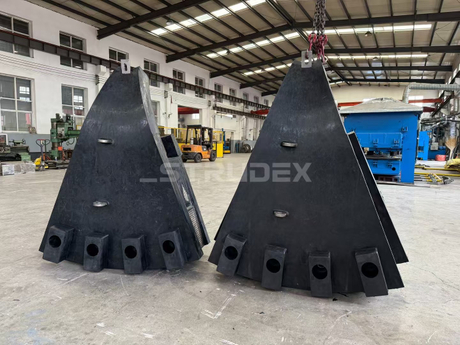

Manganese steel liners are widely used due to their toughness and ability to work-harden under repeated impact. These liners are suitable for high-impact applications, such as semi-autogenous (SAG) mills, where large grinding media and hard ores create intense forces.
Impact Absorption: Manganese steel liners absorb shock effectively, reducing energy loss from excessive vibration.
Work Hardening: As the liner surface hardens over time, it maintains consistent media motion, optimizing energy transfer to the ore.
High-chrome steel liners provide superior wear resistance, especially in fine grinding applications where abrasion dominates.
Reduced Friction: The hard, smooth surface reduces friction between balls and the liner, minimizing energy loss.
Consistent Grinding Profile: Maintaining the liner shape ensures predictable media motion, which improves energy efficiency.
Rubber and composite liners are increasingly used for their impact absorption and energy-saving characteristics.
Energy Savings: Elastic liners reduce energy loss caused by excessive rebound and vibration, directing more energy to ore grinding.
Noise Reduction: Lower vibration translates to reduced operational energy expenditure on moving the mill shell and media inefficiently.
As mill liners wear over time, energy efficiency decreases. Worn liners alter the motion of grinding media, reducing the effectiveness of each collision with the ore. In severe cases, grinding becomes inefficient, requiring more energy to achieve the same particle size.
Regular inspection, maintenance, and timely replacement of liners are critical. Monitoring wear patterns and using modular liners that allow partial replacement can help maintain energy-efficient operation without excessive downtime.
Several operational factors, in combination with liner selection, influence energy consumption in mills:
Grinding Media Load: Proper loading ensures that energy is applied effectively, while overloading increases friction and energy waste.
Mill Speed: Operating at optimal speed ensures ideal media trajectories, maximizing energy transfer.
Ore Characteristics: The hardness, moisture content, and abrasiveness of ore affect how efficiently energy is used. Liners must be selected and designed to match these properties.
Feed Size and Distribution: Uniform feed distribution reduces energy spikes and ensures consistent grinding efficiency.
By aligning liner material and design with operational conditions, operators can minimize energy waste and enhance overall mill efficiency.
Advances in mill liner technology have enabled greater energy efficiency:
Computer-Aided Design (CAD) Liners: CAD tools simulate media motion, impact forces, and wear patterns, allowing engineers to design liners that optimize energy transfer.

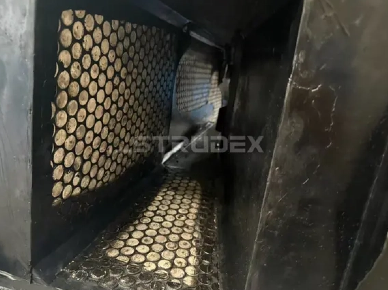

Composite Liners: Combining metal and rubber elements reduces energy loss due to vibration while providing wear resistance.
High-Performance Alloys: New materials combine toughness and hardness, ensuring consistent media motion and energy-efficient grinding.
Monitoring Systems: Sensors and software can track liner wear and mill performance in real-time, enabling proactive maintenance and energy optimization.
Adjustable Liners: Some modern systems allow partial adjustment or repositioning of liner sections to maintain optimal media motion as wear occurs, further reducing energy losses.
These innovations allow mineral processing plants to reduce electricity consumption while maintaining high throughput and product quality.
In a semi-autogenous grinding (SAG) mill processing copper ore, operators observed high energy consumption due to uneven wear on manganese steel liners. After replacing worn liners with CAD-optimized, high-chrome rubber-composite liners, the mill achieved:
10% reduction in energy consumption due to more efficient media motion.
15% increase in throughput because each collision with ore became more effective.
Lower maintenance costs as modular composite liners allowed selective replacement without shutting down the mill.
Similarly, in an iron ore processing plant, switching from traditional manganese liners to high-chrome step-profile liners resulted in a 12% reduction in overall grinding energy while improving particle size consistency. These examples illustrate how liner choice, design, and maintenance directly influence energy efficiency in diverse industrial contexts.
