Every mining operation faces a critical bottleneck. You will find this bottleneck directly at the material drop zone. Heavy ores plummet from substantial heights. They strike the receiving rubber surface aggressively. This high-risk zone causes catastrophic belt damage. It also triggers unscheduled downtime and severe fugitive dust emissions. Traditional impact idlers simply cannot handle heavy lump loads over extended periods. Roller bearings seize under extreme impact. Belts sag deeply between idler gaps. These structural gaps create localized puncture risks.
We must rethink how we absorb kinetic energy. Operating environments demand resilient infrastructure. Relying solely on standard rollers guarantees frequent failures. This article provides a straightforward, vendor-neutral framework. You will learn how to evaluate and specify the right energy-absorbing equipment. Our goal is to help you optimize component life. We want to stabilize your high-tonnage transfer zones. Upgrading this single area dramatically improves overall plant reliability.
Selecting the correct impact bed requires calculating specific impact energy based on maximum lump weight and drop height, rather than relying on standard belt width alone.
A high-quality impact bar system balances impact absorption (rubber/urethane core) with low friction (UHMW-PE top cover) to prevent belt drag and motor strain.
Impact beds are foundational to material spillage control; they eliminate belt sag, creating the continuous flat profile required for effective skirtboard sealing.
Maintenance accessibility (e.g., slide-out track designs) is a critical evaluation metric for reducing confined-space risks and long-term labor costs.
Traditional impact rollers struggle under extreme tonnage. Standard idlers rely on rotating steel shells and internal bearings. Heavy rock impacts transfer kinetic energy directly into these delicate mechanical parts. Bearings shatter upon continuous severe impact. Steel shells crack or dent. When an idler fails, it stops rotating. The stationary steel shell acts like a sharp knife against the moving belt. This friction generates immense heat and gouges the rubber surface.
Idlers also create unavoidable physical gaps. Belts naturally sag between consecutive rollers. This continuous sagging allows sharp rocks to wedge tightly against side skirtboards. Over time, these wedged rocks cause devastating longitudinal tears. A long tear destroys the entire belt structure.
We must examine the downtime economics of these failures. A ripped belt stops production entirely. You lose massive production volume during an emergency splice repair. Compare this massive production loss against a preventative equipment upgrade. Investing in robust mining belt protection prevents these catastrophic events. The initial capital outlay represents a fraction of the lost revenue from one major downtime event.
Fugitive material creates severe safety hazards. Airborne dust poses significant respiratory risks to plant personnel. Spilled rocks require intensive manual shoveling near moving machinery. Manual cleanup exposes workers to pinch points and entanglement risks. Stabilizing the belt path reduces these manual hazards directly. Proper support keeps material on the belt. Keeping material contained helps operations avoid strict regulatory fines regarding air quality and workplace safety.
You cannot buy impact equipment based on standard belt width alone. Engineering a reliable mining conveyor impact bed requires strict mathematical sizing. You must calculate the specific impact energy occurring at your unique drop zone. We use a standard industry formula for this calculation.
The standard formula is straightforward. Impact Energy equals the weight of the largest lump multiplied by the total drop height. You measure this energy in pound-feet (lb-ft) or Joules. You then compare your calculated energy against established Conveyor Equipment Manufacturers Association (CEMA) standards. CEMA defines specific duty classifications. Matching your calculation to the correct class ensures structural survival.
CEMA Duty Class | Impact Energy (lb-ft) | Typical Application Scenario |
|---|---|---|
Light Duty | Up to 200 | Small aggregate, sand, minimal drop height |
Medium Duty | 200 to 1,000 | Standard coal, gravel, moderate drop zones |
Heavy Duty | 1,000 to 2,000 | Primary crushed hard rock, high tonnage |
Extra-Heavy Duty | Over 2,000 | Run-of-mine (ROM) ore, massive drop heights |

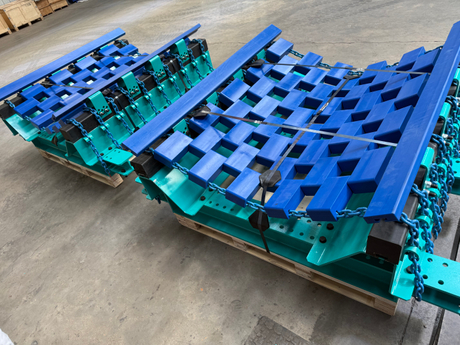

Impact bar composition dictates long-term performance. You must evaluate all three layers of the bar. The top layer requires Ultra-High Molecular Weight (UHMW) polyethylene. UHMW provides a slick, low-friction surface. This layer prevents excessive belt drag. The middle layer absorbs the shock. You should evaluate the energy-absorbing rubber or urethane. Check the specific durometer ratings. Softer rubber absorbs better but wears faster. You need the right balance for your ore type.
Pay close attention to the fastening mechanism. Many cheap bars use standard T-bolts. We strongly warn against using simple T-bolts in heavy mining applications. Extreme horizontal shear forces often rip T-bolts straight through the rubber core. We recommend demanding extruded aluminum inserts. Aluminum extrusions run the entire length of the bar. They lock the fasteners securely and distribute shear forces evenly.
Structural frame integrity matters just as much as the bars. Assess the steel troughing frame carefully. Standard sheet metal frames warp under continuous dynamic loading. Emphasize the need for robust, reinforced weldments. Heavy-duty steel cross-members prevent fatigue cracking. The frame must absorb residual kinetic energy without transferring stress into the main conveyor stringers.
Procurement teams often favor fixed steel frames. Fixed frames cost less initially. However, they create long-term operational nightmares. We highly recommend track-mounted slide-out beds. You should contrast the initial cost savings of fixed frames against long-term operational efficiency. Modular slide-out designs save countless labor hours over the equipment's lifespan. Maintenance teams can maintain a robust impact bar system much faster using modular tracks.
Confined space regulations strictly govern chute entry. Entering a sealed transfer chute requires complex permitting. It mandates harness usage, air monitoring, and safety spotters. Slide-out designs eliminate this dangerous confined space entry. Technicians unbolt the side panels. They pull the entire track safely outside the chute wall. Workers swap worn components standing in a secure walkway. This modular approach reduces maintenance downtime by up to 70 percent. It also drastically improves site safety metrics.
Proper belt transition prevents severe edge damage. You must match the troughing angle of the impact zone to the adjacent idlers. Common angles include 20°, 35°, and 45°. If you mismatch these angles, the belt bends unnaturally. This unnatural bending creates severe stress concentrations on the outer rubber edges. Over time, the belt plies separate and delaminate.
Follow these structural design steps for optimal transition alignment:
Verify the exact troughing angles of your existing carrying idlers.
Measure physical clearance limits on the walkways outside the chute walls.
Calculate the required transition distance from the tail pulley to the load zone.
Select track-mounted modular frames featuring matching angle profiles.
Ensure the top surface of the bars sits slightly below the adjacent idler rolls.
A stable foundation is the absolute prerequisite for clean operations. Secondary sealing systems rely entirely on a flat belt profile. Skirting rubbers and internal dust curtains are mathematically designed for flat surfaces. They will inevitably fail if the belt sags between supporting rollers. A sagging belt creates continuous wavy gaps along the chute wall. High-pressure air forces fine particles through these gaps instantly.
Integrating robust support creates true edge sealing synergy. A flat belt profile provides the continuous support necessary for dual-seal skirtboards. The primary inner seal handles bulk material pressure. The secondary outer lip captures fine dust. Neither seal works effectively without firm upward pressure from underneath. Solid bar support locks the rubber perfectly against the skirtboard. This combination represents the core of effective material spillage control.
Modern transfer zones utilize strategic transition zones. You rarely need heavy kinetic absorption along the entire chute length. Discuss the layout strategy with your engineering team. You should place a heavy duty impact bed directly inside the primary drop zone. This specific area receives the violent initial rock impacts. As the material settles onto the moving belt, kinetic energy drops significantly.
Follow the heavy-duty section immediately with slider beds or transition idlers. Slider beds use fewer bars and cost less. They handle the lower-impact settling zones efficiently. They maintain the flat profile required for sealing without over-engineering the structural frame. Combining these distinct support types optimizes your capital expenditure. It also ensures proper dust containment from the initial drop point to the chute exit.
Many operations purchase equipment based purely on original plant blueprints. This approach carries severe implementation risks. You must conduct thorough pre-installation site audits. Theoretical material drop trajectories rarely match reality after years of chute wear and modifications. Verify actual material flow paths during live operation. Measure exact internal chute dimensions physically. Check for tight clearance restrictions around adjacent walkways before procurement.
You must carefully address friction and motor draw. Engineers accurately assume stationary support bars increase overall belt friction. UHMW polyethylene offers low drag, but it still causes more resistance than spinning rollers. Advise your electrical and mechanical teams. Consult them to ensure existing conveyor drives can handle the slight increase in drag. Marginal motors might trip or overheat if you install excessively long slider sections.
When shortlisting vendors, separate generic suppliers from true engineering partners. You need objective proof of performance. Request the following specific evidence during your procurement process:
Demand independent impact rating test data confirming the exact CEMA classification claims.
Ask for documented bar wear-life case studies operating in similar abrasive ores.
Require exact warranty stipulations regarding catastrophic shear failures and aluminum track pull-outs.
Verify the availability of local technical support for post-installation tensioning adjustments.
An impact bed is never a simple, generic commodity. It serves as an engineered safety and reliability asset for your critical conveyor transfer point. Relying on standard idlers under extreme lump loads guarantees ongoing damage, excessive dust, and lost revenue. By upgrading to a properly specified track-mounted system, you eliminate belt sag and protect your most expensive rubber assets.
Take immediate action to stabilize your worst drop zones. We recommend readers conduct a baseline physical audit of their most problematic transfer area this week. Calculate your peak impact energy using the maximum lump size and drop height formula. Once you establish your required CEMA duty class, request modular design proposals from your shortlisted suppliers. Prioritize slide-out frames to protect your maintenance teams and maximize your operational uptime.
A: Multiply the weight of the heaviest single lump of material by the total drop height. Measure this drop from the head pulley of the discharging belt to the surface of the receiving belt. Compare this calculated figure against manufacturer duty ratings to select the correct CEMA classification.
A: Wear life depends entirely on tonnage, material abrasiveness, and belt speed. High-quality UHMW bars typically feature a visible wear indicator groove. Replacement is strictly required when the groove is no longer visible. Changing them promptly prevents the moving belt from contacting the underlying aluminum track.

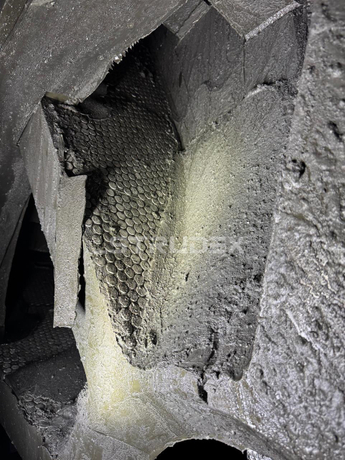

A: No. An impact bed eliminates the belt sag that causes structural gaps. However, it must always be paired with properly adjusted skirtboards and internal wear liners to create a complete, sealed transfer point. The bed provides the foundation; the skirting provides the seal.
A: Slider beds focus primarily on continuous sealing and dust control in low-impact settling zones. Impact beds are structurally reinforced with heavy steel frames and thick rubber cores. They absorb severe kinetic energy from falling rocks directly in the primary drop zone.
