Magnetic Liners For Vertical Mill

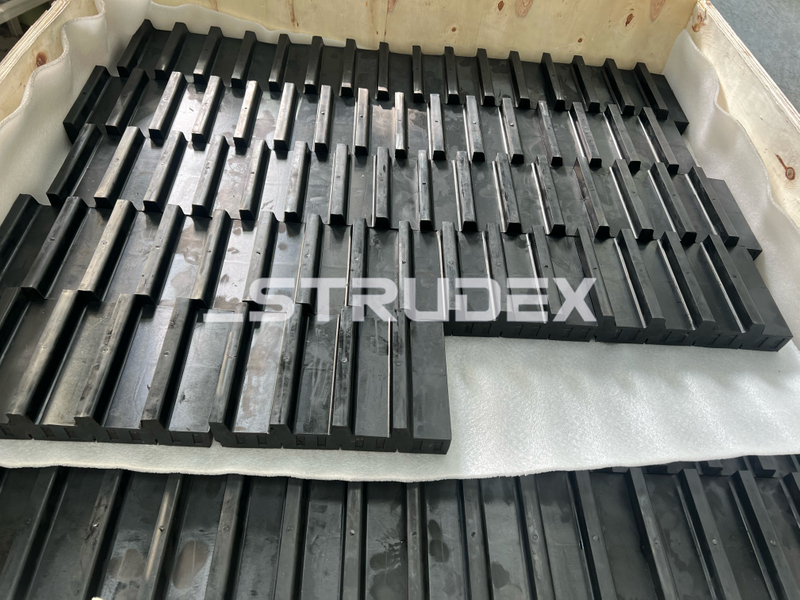

Strudex magnetic liners protect the inner walls of vertical mills with a combination of wear-resistant rubber, steel plates and embedded magnets. Hot-vulcanized construction joins the rubber and magnets, while grooves on the back help the modules follow the mounting surface. This modular format supports replacement of individual worn sections.

  • Rubber and steel construction for abrasion and impact exposure.
  • Panel size and shape tailored to the required lining area.
  • Application review covers shell material, grinding media and operating clearances.

Specify the mill body or door location when requesting a quotation so the lining can be assessed against the actual equipment geometry.

Availability:
Quantity:

Strudex magnetic liners protect the inner walls of vertical mills with wear-resistant rubber, steel plates and embedded magnets. Hot vulcanization joins the rubber and magnets, while grooves on the back help the modules follow the mounting surface. Individual modules can be replaced as their condition requires. Select the layout around the protected wall, the mill load and the available internal space.

Technical Parameters

ParameterProduct specification
Product typeModular magnetic mill liner
Wear materialWear-resistant rubber
Metal componentSteel plates
Magnetic componentEmbedded magnets
Bonding constructionHot-vulcanized rubber and magnet assembly

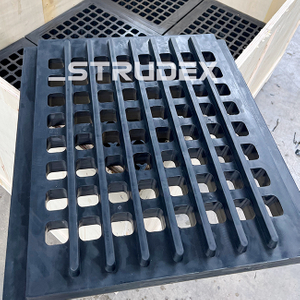

Back profileGrooved surface
Intended locationInner walls of vertical mills
Custom configurationSize, shape and material to the agreed requirement

Confirm the magnetic duty before choosing the layout

Magnetic attachment and a magnetically retained protective bed are separate selection questions. The mounting arrangement concerns how a panel stays in place; the retained bed concerns what material remains on its working face. Where either principle forms part of the proposed design, check its conditions explicitly. The presence of magnets alone does not establish suitability for every shell material, ore blend or grinding medium.

  • Mounting surface: for magnetic attachment, verify a suitable ferromagnetic steel surface, its condition and the approved retention arrangement. Coatings, scale, previous repairs and gaps can affect contact. Record these conditions on the existing mill rather than assuming that the equipment name establishes the mounting interface.
  • Retainable material: where a protective bed is intended, confirm that magnetic minerals or ferromagnetic media fragments are available and can remain at the surface. Nonmagnetic ore combined with ceramic media does not provide the same source of material for magnetic retention as a load containing suitable magnetic particles.
  • Duty changes: report a proposed change from steel to ceramic media, a different media size or a new ore blend. These changes can alter the supply of retainable material while leaving the mill dimensions unchanged. Previous operating experience should be compared with the intended next campaign.
  • Working space: review the installed liner and any intended retained layer against the nearest moving component, door movement and transitions to adjacent protection. Identify body or door coverage separately from screw flights, shaft covers and media retention screens, which perform different duties.

Check the mounting and assembly interfaces

Use the lining schedule to connect every module with its installed position. Panel curvature, joint orientation and support condition determine whether the new parts form the intended surface. A drawing of the complete protected region is more useful than isolated overall dimensions, especially where a door or a change in wall profile interrupts the layout.

  1. Inspect the exposed support under the approved isolation and access procedure. Remove loose debris by the site method and record damaged surfaces, coatings or repairs that could affect seating. A liner is a wear component; it does not establish that a damaged shell or mounting surface is structurally sound.
  2. Compare each delivered module with the agreed outline, thickness, back profile and orientation. Reconcile the quantities and position references before installation. Distinguish dimensions taken from a worn sample from the intended new geometry so a replacement does not reproduce an eroded edge or reduced section.
  3. Plan the handling of magnetic components using the approved method. Control nearby loose ferrous objects and account for pinch hazards as the panel approaches the mounting surface. Confirm access for positioning and removal; a modular format does not by itself make every section suitable for manual handling.
  4. Verify seating, retention, joint alignment and the specified clearances before closure. Record the completed layout and any approved departures from the drawing. This creates a baseline for later inspections and helps identify whether a local wear problem follows the panel, its position or a changed operating condition.

Read the wear pattern at named positions

Inspection findingWhat to review
Rubber thinning or exposed backingMeasure the critical local section and compare it with the installed new profile. Average thickness can conceal the location that governs replacement.
Lifted edge or movement at a jointCheck seating, retention and material behind the module before treating the problem only as wear-face abrasion.
Uneven retained-bed coverage, where usedRecord the available magnetic load, flow path and local loss of material. A bare region can experience a different contact duty from a covered region.
Damage concentrated beside a transitionInspect the neighboring part, panel orientation and working clearance. Include a wide photograph showing the location as well as a close view of the damage.

Keep the same inspection positions and record hours, processed tonnage and changes in feed or media. These observations provide a practical basis for selecting the next replacement scope. They also help distinguish gradual abrasion from isolated impact damage, mounting movement or a loss of the intended protective layer.

Define the replacement and acceptance scope

Send Strudex the mill identification, wall or door location, dimensioned layout, shell material, mounting details and wear photographs. State the media material and ore magnetic characteristics. Agree the component schedule and acceptance dimensions before ordering. Where the project requires evidence of magnetic holding capacity, bond integrity or material properties, define the verification method and documentation in the enquiry; visual finish alone cannot establish those properties.

Product FAQ

Will a magnetic protective bed form when the mill uses ceramic media?
Not from ceramic media alone. Where the proposed lining relies on a retained bed, suitable magnetic minerals or ferromagnetic fragments must be present in the load. Confirm the ore characteristics and media material together, especially when changing from steel to ceramic media.
Can the modules attach magnetically to any vertical mill shell?
No. Magnetic attachment requires a suitable ferromagnetic mounting surface and an approved retention arrangement. Coatings, gaps, scale and surface damage can affect contact. Supply the shell material and mounting details so attachment can be assessed separately from the wear protection required.
Are these panels replacements for vertical mill screw liners?
No. This product is intended for the inner walls of vertical mills. Screw flights, shaft covers and other moving wear components have different geometry and loading. Identify the wall or door location on the lining drawing and check its clearance to the moving assembly.
Can we order only the most worn magnetic liner modules?
A partial replacement can be considered when the retained modules and interfaces remain serviceable. Identify the affected positions, neighboring profiles and removal sequence. Include wear photographs and dimensions so the proposed modules preserve the required seating, retention and working clearance throughout the protected area.
