Strudex Trommel Screens – Engineered for Maximum Durability & Efficiency

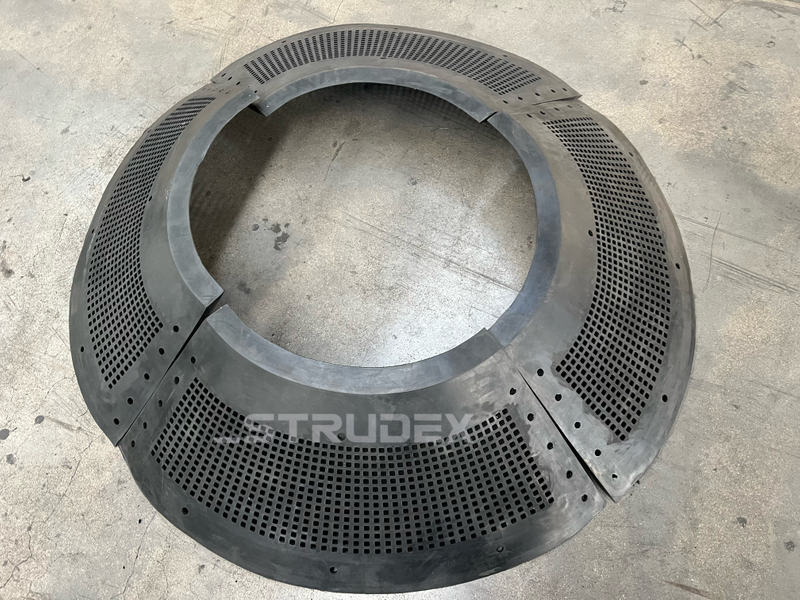

Strudex trommel screening media forms the replaceable separation surface of a rotating drum. The documented rubber and polyurethane panel family combines wear surfaces with application-specific openings, allowing undersize to leave the drum while retained material continues toward discharge. Its value is the relationship between aperture area, material movement and a maintainable sectional layout, rather than the screening surface alone.

Technical Parameters

Follow the two material paths through the drum

A trommel repeatedly brings the feed into contact with its screening surface as the drum turns. Particles that can pass must reach an opening in a suitable orientation; retained material travels along the drum to its own discharge. This creates two practical requirements for the panels: preserve the intended openings and expose the feed to enough usable screening area during its passage.

1. At entry, establish the amount and condition of the incoming material. Large particles can concentrate impact near the feed region, while a wet pulp also brings a liquid load. Dry-solids tonnage and slurry volume describe different parts of that duty.
2. Along the drum, particles repeatedly approach the working surface. The opening pattern, available area and bed conditions influence their opportunity to pass. An intact surface that is covered by adhering fines contributes less useful area than its drawing suggests.
3. At discharge, the retained stream reveals what has not passed. Compare that material with the collected undersize to distinguish an intended coarse fraction from valuable undersize carried out through insufficient access or blocked openings.

Different locations can require different wear priorities

These regions explain why a single whole-drum wear description is often too coarse for ordering. A position schedule allows local differences to be represented while keeping the complete screen assembly coordinated. It also lets a plant renew the sections that have reached their criteria without assuming that every neighbouring panel needs the same material or replacement timing.

Rubber and polyurethane are configuration choices

Strudex’s own trommel catalogue supports rubber and polyurethane product families. Their usefulness depends on the selected formulation and panel construction. Rubber resilience can accommodate particle contact and movement around openings; polyurethane is another polymer wear option whose stiffness, wear behaviour and chemical suitability are formulation-dependent. The correct comparison is between defined configurations under the actual duty.

• For impact-dominated locations, consider the feed contact and support arrangement with the elastic response of the proposed panel. The material label alone does not establish the allowable lump size or drop height.
• For gradual sliding wear, preserve the opening pattern and thickness needed by the separation. A thicker section changes the path through an aperture as well as the amount of material available to wear.
• For wet or clay-rich duty, identify whether the limitation is lodged particles or a coating of fines. Flexible media can help address some blockages, but the feed, water and operating arrangement still influence the result.

Apertures, support and mounting form one screen surface

A panel needs the intended curvature and support spacing so it sits as part of the drum. Its retention system must match that arrangement. Bolt-on and quick-change describe different installation concepts; neither description establishes compatibility with every frame. When the working surface and its support are defined together, the required geometry becomes reproducible at future replacement.

Define the required screen-media scope with the drum drawing, panel positions, aperture configuration, material and retention details. Include feed distribution, maximum size, wet or dry duty and the required products. Frame or complete-drum work is a separate scope from replacement media. This keeps the purchase centred on the surfaces and interfaces that the screening duty actually needs, without importing unrelated whole-machine ratings.

Product FAQ

Does this product page cover a complete driven trommel?

The page describes trommel screening media and replaceable panel configurations. Frame, drive or complete-drum requirements need a separately defined purchase scope. Identify the existing structural drawing and retained components so a media quotation is compared with the actual replacement requirement rather than an assumed complete machine.

Can different screening materials be used along the same drum?

A position-specific arrangement can be considered when the drum design supports the selected sections. Check material, thickness, curvature, supports and fastening together at each location. Different wear zones may justify different media, but mixing materials does not remove the need for a compatible structural and retention arrangement.

How can operators distinguish pegging from blinding on a trommel?

Pegging involves individual particles lodged in apertures; blinding involves material covering or adhering around the screening surface. Photograph the obstruction and record feed shape, near-size content, moisture and clay. The distinction helps direct the review toward aperture geometry, adhesion conditions or another part of the flow path.

Which tonnage figure should be used to compare panel consumption?

Use a clearly defined measure that is consistent between operating periods, such as dry-solids tonnes where those records are available. Keep feed properties, hours and the reason for replacement alongside it. Wet mass or slurry volume should not be compared directly with dry tonnage without accounting for their different bases.
