Heavy bulk materials destroy unprotected transfer points daily. This constant beating drives high capital expenditures. Facilities often face frequent replacements because of intense physical wear. Gouges, deep punctures, and complete carcass tears ruin expensive belts fast. Success means more than just surviving the daily shift. You must achieve a measurable extension of overall lifespan. You also need to reduce unscheduled downtime and stabilize every transfer zone. A conveyor belt impact bed offers exactly this solution. It acts as an engineered component designed to transition dangerous kinetic energy safely. This technology moves your operation from reactive patching to proactive defense. It absorbs massive shocks before they penetrate the cover. By learning how these structures work, operators can protect vital assets. You will discover the physics of energy dissipation in this article. We also cover selection criteria, routine maintenance, and practical installation methods.
Impact beds extend belt service life by absorbing kinetic energy at the drop zone, preventing sharp materials from pinching the belt against rigid idlers.
A continuous support surface eliminates the belt sag that allows material entrapment and premature wear.
Selecting the right conveyor belt impact bed requires calculating maximum drop height, lump weight, and material velocity.
Long-term ROI relies on pairing impact absorption beds with proper skirting and routine periodic maintenance inspections.
Traditional impact idlers often fail catastrophically under heavy loads. They create a damaging "anvil effect" during operation. Falling rocks strike the belt directly over a rigid steel roller. The belt has nowhere to flex downward. It gets trapped between the jagged rock and the unyielding idler. This pinching action causes deep punctures and severe cover rips. Effective conveyor belt protection becomes impossible under these harsh conditions. Idler bearings also shatter from repeated acute impacts. An engineered bed changes this dynamic entirely. It provides a continuous, flush profile across the entire drop zone. Materials can no longer force the rubber down between isolated rollers. The flat surface distributes localized pressure across a much wider area. You eliminate the unsupported gaps where tearing usually occurs. The entire load zone becomes a stabilized, solid platform. This solid foundation prevents sharp objects from piercing the fabric carcass. It dramatically changes how your equipment handles severe impact stress.
Energy transfer physics dictate how loading zones survive over time. Falling bulk materials carry massive kinetic energy upon impact. A heavy rock dropping from ten feet accelerates significantly. An impact absorption bed uses a specialized shock-absorbing rubber core to counter this. The internal bars compress instantly when struck by heavy loads. This compression dissipates the downward force safely and quickly. It converts destructive kinetic energy into harmless heat and micro-deflection. The underlying steel frame remains completely isolated from the acute shock. By absorbing the blow, the rubber saves the belt carcass. However, we must remain realistic about physical equipment limitations. These engineered beds expertly mitigate direct force impacts. They cannot compensate for fundamentally flawed chute designs. Excessive drop heights beyond their engineered rating will still cause failures. You must always match the equipment strictly to the actual operating parameters. Proper engineering prevents overloading the absorption capacity of the rubber core.
Reducing acute impact force prevents devastating micro-fractures in the top cover. Heavy rocks easily gouge unprotected rubber surfaces during loading. These tiny surface cuts expand quickly under continuous tension. An absorbing bed cushions the initial blow highly effectively. It shields the delicate top cover from deep, irreversible penetration. This cushioning also protects mechanical fasteners and vulcanized splices. Splices represent the weakest structural link in any running system. Acute shock can rip a newly vulcanized splice apart instantly. By dampening the impact, you protect these critical joints. This directly extends your overall belt service life. Your maintenance team spends far less time executing emergency splice repairs. They can focus on proactive system improvements instead. Less gouging means the top cover retains its engineered thickness longer. You get maximum value from your initial belting investment.
Belt sag causes massive operational problems at the transfer zone. Unsupported rubber dips slightly between traditional idler sets. Material easily slips under the skirting seals into these small gaps. This entrapped rock acts exactly like a grinding wheel against the edges. Over time, it destroys the margins and causes severe fugitive spills. Such loading point damage forces unexpected operational halts constantly. A flat, supported profile optimizes skirting seals completely. The continuous support keeps the rubber pressed firmly against the skirtboard. It prevents abrasive dust from escaping the enclosure safely. You drastically reduce the material drag degrading your equipment. This sealed environment keeps walkways clean and workers much safer. It also prevents valuable product from falling off the system entirely. Controlling spillage translates directly into improved plant efficiency and cleaner operations.
Material composition directly dictates field performance and longevity. A quality bar requires a reliable low-friction top layer. Manufacturers typically use UHMW (Ultra-High Molecular Weight) polyethylene for this exact purpose. Standard plastics fail because they melt or crack under extreme friction. UHMW allows the rubber to glide smoothly without generating excessive heat. High friction would burn the bottom cover away quickly. Below the top layer sits a high-absorption rubber mid-layer. This middle section performs the actual heavy energy dissipation. A rigid aluminum fastening track secures everything firmly at the base. The rubber is heavily vulcanized to this track to prevent separation. The aluminum track prevents the bar from warping under intense pressure. This tri-layer design ensures both optimal slip and shock resistance. You need all three layers functioning perfectly to guarantee protection.

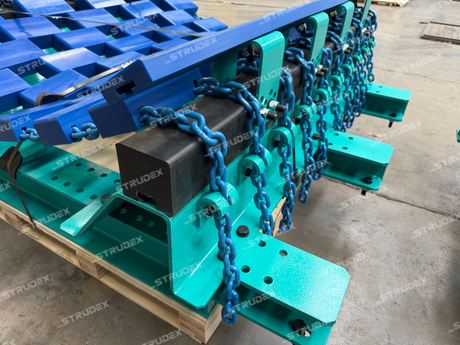

The steel frame design determines overall structural integrity. Flimsy frames will buckle dangerously under heavy lump weights. You must evaluate the cross-supports and side stringers carefully. Industry frameworks help classify these massive structures accurately. CEMA (Conveyor Equipment Manufacturers Association) standards provide a reliable baseline metric. These standards categorize beds into distinct duty classifications. This ensures you buy the correct structural strength for your application.
Duty Classification (CEMA) | Typical Application | Lump Size & Drop Height Limits |
|---|---|---|
Light-Duty (L) | Sand, fertilizer, woodchips | Small lumps, drop heights under 5 feet |
Medium-Duty (M) | Coal, gravel, limestone | Medium lumps (up to 8 inches), drops up to 10 feet |
Heavy-Duty (H) | Hard rock mining, large ores | Massive lumps (12+ inches), drops exceeding 10 feet |
Always verify the frame rating against your maximum expected lump size. Using a light-duty frame in a hard rock application guarantees failure. Over-specifying provides a safety margin but increases initial bulk.
Modularity transforms how maintenance crews approach heavy repairs. Slide-out frames allow for highly efficient servicing during tight outages. Technicians can replace worn bars quickly and safely. Modular bar designs mean you only replace the heavily damaged sections. You rarely need to swap out the entire bulky assembly. This prevents long, agonizing repair shifts in extremely tight spaces. Rapid maintenance occurs without ever requiring dangerous belt lifting. Crews simply slide the track out, swap bars, and slide it back. This smart approach improves site safety significantly. It also maximizes operational uptime by cutting repair hours in half. Easy serviceability encourages technicians to perform proactive maintenance regularly. Ignoring difficult-to-reach components often leads to catastrophic mechanical failures.
Retrofitting existing chutes presents unique engineering challenges daily. You cannot simply drop a new frame into an old structure. Technicians must match the specific trough angles perfectly. Transition distances require precise calculation to avoid stressing the outer edges. You often encounter structural interferences in older transfer chutes. Steel supports or chute walls might block the new frame completely. mining conveyor belt systems require custom engineering for proper integration. Modifying the existing chute work ensures a seamless, safe fit.
Consider these integration steps when planning your installation:
Measure the internal chute width and external stringer width accurately.
Calculate the exact drop height from the head pulley to the impact zone.
Identify the current trough angle (typically 20, 35, or 45 degrees).
Locate any cross-bracing that might impede the modular slide-out mechanism.
Determine the necessary distance for transition idlers to prevent edge stretching.
Proper alignment guarantees the new bed functions as originally intended. Skipping these measurement steps leads to uneven wear and poor sealing.
You must remember an impact bed is never a standalone fix. It requires proper integration alongside other critical components. It must work perfectly with appropriate slider beds downstream. Slider beds offer ongoing support after the initial impact zone. Skirting systems must align flush against the newly supported profile. You also need correctly angled transition idlers. These idlers gently guide the rubber from a flat profile to a troughed shape. Failing to align these complementary systems causes secondary wear issues. The entire load zone acts as one unified mechanical environment. If one component fails, the surrounding parts suffer immediately. Upgrading your sealing system simultaneously offers the absolute best protection.
Routine inspections keep protective efficacy extremely high. A pragmatic checklist approach prevents sudden catastrophic failures. You must establish strict weekly and monthly routines to monitor equipment health.
Weekly Visual Inspections: Check the UHMW wear indicators visually. Once the top colored layer wears down, friction increases dangerously. Look for any severely cracked or missing bars along the load path.
Monthly Mechanical Checks: Check and torque all mounting bolts on a strict schedule. Heavy vibrations constantly loosen structural fasteners over time. Verify the frame remains perfectly level across the stringers.
Housekeeping Routines: Clear out any material buildup wedged deeply between the bars. Compacted fines harden like concrete and restrict rubber compression completely. Wash away corrosive dust to protect the steel framework.
Proper housekeeping ensures the bars can actually absorb incoming shocks. Ignoring these basic maintenance tasks ruins the equipment prematurely. Consistent inspections catch minor issues before they become major production stops.
Extending service life requires shifting the severe wear burden permanently. You must move the physical damage away from the expensive belt. Focus it onto the easily replaceable impact bars instead. Simply looking at physical dimensions rarely guarantees success. You must select heavy-duty models based on rigorous kinetic energy calculations. Gather data on drop height, lump weight, and material velocity first. We strongly encourage you to request a professional transfer point audit. Get a full engineering assessment to calculate specific forces accurately. Do this before making any final procurement decisions. This proactive step secures your operational stability and protects your assets. Investing time in engineering prevents wasteful spending on inadequate equipment.
A: Wear rates depend entirely on tonnage, material abrasiveness, and operational hours. Heavy industrial applications experience extreme variability. High-tonnage copper mines might replace bars every six months. Sand and gravel operations often see bars last for several years. Regular inspections remain the best way to determine your specific replacement timeline.
A: No. These structures have a highly specific footprint. They sit directly under the primary material trajectory to absorb acute shocks. You still need standard idlers along the rest of the run. Transition idlers are also required before and after the bed to form the trough angle gradually.
A: It causes a very minor, usually negligible, increase in motor draw. The UHMW polyethylene top layer features an extremely low friction coefficient. When correctly aligned, it allows the rubber to glide smoothly. The massive energy savings from reduced material drag often offset this tiny power increase completely.
