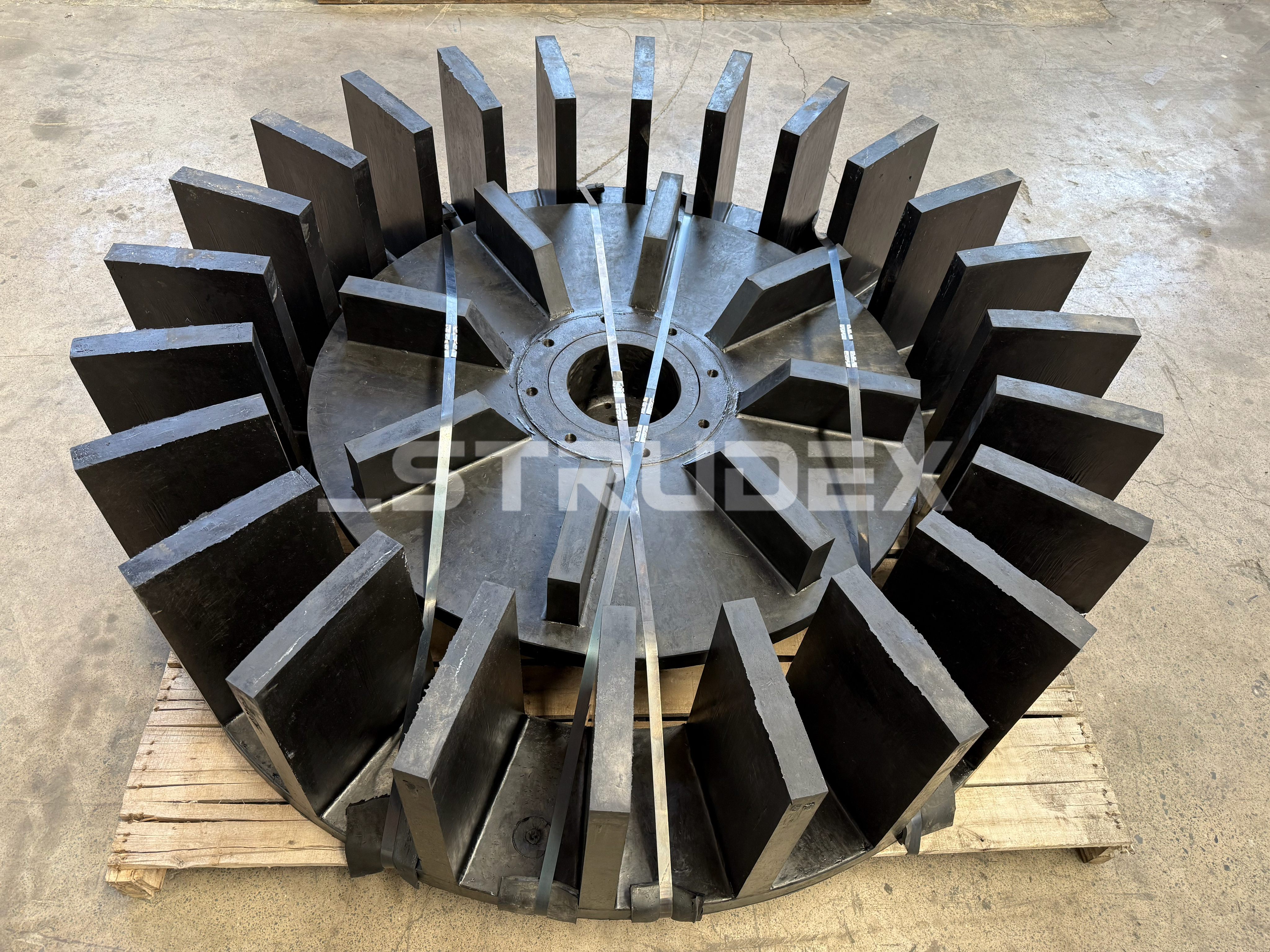

Precision-Engineered for Superior Slurry Mixing and Air Dispersion--Strudex Flotation Rotor & Stator

At the heart of every mechanical flotation cell lies the rotor-stator mechanism — the critical component responsible for mixing the slurry, dispersing air, and generating the kinetic turbulent energy necessary for effective mineral separation. The rotor creates a low-pressure zone that draws in air and shears it into fine bubbles, while the stator directs the flow pattern to ensure uniform bubble distribution throughout the cell. Together, they determine the metallurgical performance, energy efficiency, and overall productivity of the entire flotation circuit.

Engineered for Extreme Durability

Flotation cell rotors and stators face relentless wear from abrasive slurry solids, corrosive chemicals, and continuous high-speed operation. Strudex addresses these challenges with advanced wear parts engineered to withstand the most punishing conditions.

Superior Material Selection

Strudex rotors and stators are manufactured using premium-grade rubber and polyurethane formulations, reinforced with metal skeletons for structural integrity. Polyurethane offers the unique combination of plastic-like strength and rubber-like elasticity, delivering exceptional wear resistance and impact absorption. Rubber compounds provide excellent resilience and corrosion resistance in acidic and alkaline environments. This material versatility allows Strudex to tailor each component to the specific requirements of the application.

Extended Service Life

Through rigorous material engineering and precision manufacturing, Strudex wear parts significantly outlast conventional components. Industry benchmarks show that high-grade elastomer flotation parts can deliver 1.5–3 times longer service life compared to standard alternatives. This translates directly into reduced downtime, fewer replacements, and lower total cost of ownership.

Corrosion and Chemical Resistance

Strudex components are formulated to resist acid, alkali, and seawater corrosion. This makes them particularly suitable for processing complex ores and operating in aggressive chemical environments where metal parts would rapidly degrade.

Precision Engineering and OEM Compatibility

Comprehensive Model Coverage

Strudex engineers precision replacement parts for all major flotation equipment brands and models. Whether you operate forced-air or self-aspirated flotation cells, Strudex provides drop-in replacements that restore — and often exceed — original equipment performance.

Custom-Engineered Solutions

Beyond standard replacements, Strudex offers custom design services that tailor components to specific wear patterns and operational requirements. By analyzing the unique conditions of each flotation circuit — including ore characteristics, slurry density, and operating parameters — Strudex engineers develop optimized rotor and stator geometries that maximize recovery and minimize energy consumption.

Precision Balancing and Quality Control

Each rotor undergoes precision balancing to reduce vibration, minimize partial loading, and enhance operational stability. Strudex’s advanced manufacturing capabilities, including CNC machining and computerized quality inspection, ensure that every component meets strict dimensional tolerances and performance specifications.

Operational Benefits

Enhanced Metallurgical Performance

The rotor-stator mechanism is the single most influential factor in flotation recovery. Strudex components are engineered to deliver:

- Intense slurry agitation for thorough particle suspension

- Uniform air dispersion for optimal bubble-particle contact

- Optimal turbulent energy generation to accelerate particle-bubble attachment

Improved Energy Efficiency

Industry-leading rotor-stator designs have demonstrated the ability to reduce power consumption by 15–40% while improving material recovery. Strudex draws on these engineering principles to produce components that maximize the energy transfer from the mechanism to the slurry, reducing operating costs without compromising performance.

Reduced Maintenance Costs

With longer wear life and better wear distribution, Strudex rotors and stators require less frequent replacement. The components are designed for straightforward installation and maintenance, minimizing cell downtime and keeping your flotation circuit operating at peak efficiency.

Conclusion

Strudex flotation machine rotors and stators represent the intersection of decades of rubber engineering expertise, advanced manufacturing capability, and deep understanding of mineral processing challenges. By delivering durable, precision-engineered wear parts that are compatible with all major flotation equipment, Strudex helps mining operations achieve higher recovery rates, lower energy consumption, and reduced total cost of ownership. When you choose Strudex, you choose reliability, performance, and a partner committed to the success of your flotation circuit.
