The Process of SAG Mill Liner Installation And Removal

Semi-Autogenous Grinding (SAG) mills are critical in the mining industry, where they are used for grinding hard ores and reducing large rocks into smaller, more manageable particles. The efficiency and longevity of these mills are directly influenced by the condition of the liners, which protect the mill's internal surface and contribute to the grinding process. Proper installation and timely removal of SAG mill liners are essential for ensuring the optimal performance of the mill.

The installation and removal of SAG mill liners are not only vital for maintaining mill efficiency but also for enhancing safety, reducing downtime, and preventing costly maintenance. In this article, we will explore the entire process involved in SAG mill liner installation and removal, discuss the tools and equipment required, and highlight best practices to follow to ensure these processes are carried out effectively and efficiently.

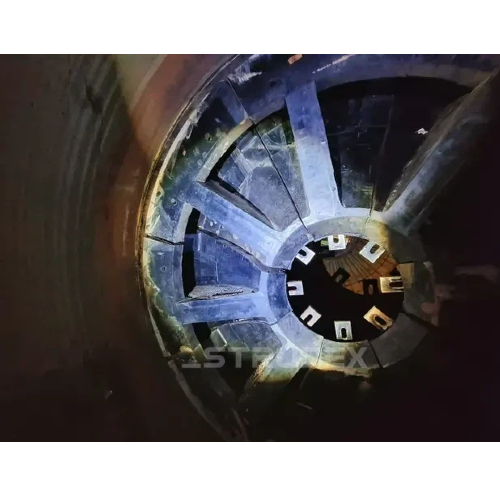

1. What is a SAG Mill Liner?

SAG mill liners are integral components that line the interior of the mill shell, providing protection against wear and tear from grinding materials. These liners are designed to withstand the harsh conditions inside the mill, where they face constant abrasion and impact from the grinding media (balls or pebbles) and the ore itself.

The primary purpose of SAG mill liners is to:

• Protect the Mill Shell: Prevent direct contact between the mill shell and the grinding media, reducing the risk of shell damage.

• Improve Grinding Efficiency: The design of the liners helps to control the motion of the grinding media, optimizing the grinding process.

• Enhance Mill Performance: Well-maintained liners contribute to maintaining the desired mill speed, material retention time, and energy efficiency.

There are several types of SAG mill liners, including high chrome steel liners, rubber liners, composite liners, and manganese steel liners. Each material has its benefits depending on the application, with factors such as ore type, impact conditions, and mill configuration influencing the selection.

2. Why is SAG Mill Liner Installation and Removal Important?

Proper installation and removal of SAG mill liners are crucial for various reasons:

2.1 Minimizing Mill Downtime

One of the primary concerns when it comes to SAG mill liner replacement is minimizing downtime. A well-planned and executed installation and removal process can help reduce downtime significantly, ensuring that the mill operates continuously and efficiently.

2.2 Safety

Improper handling of SAG mill liners during installation or removal can pose serious safety risks. The liners are often large and heavy, requiring specialized equipment for handling. Additionally, poorly installed liners can lead to operational issues that might compromise safety. Ensuring the correct installation and removal process is essential for protecting workers and minimizing accidents.

2.3 Mill Efficiency and Longevity

The condition of the mill liners directly affects the efficiency of the SAG mill. If the liners are improperly installed or not replaced in time, it can lead to uneven wear, higher energy consumption, and decreased mill performance. On the other hand, proper installation and timely removal help extend the liner’s lifespan and improve overall mill efficiency.

3. Preparation Before Installation

Before starting the installation of SAG mill liners, several steps need to be taken to ensure a smooth and efficient process. These include planning, safety measures, equipment preparation, and material inspection.

3.1 Planning and Scheduling

The first step in the preparation process is scheduling the liner installation in accordance with the mill’s maintenance plan. A detailed plan should be created, factoring in the time required for installation, potential delays, and the need for other maintenance activities.

A typical installation schedule includes:

• Preparation and Safety Briefing: Ensuring all team members are aware of their roles and the necessary safety precautions.

• Tool and Equipment Setup: Ensuring all required tools and equipment are ready for use.

• Inspection of Mill Components: Checking the mill for any damage or issues that might affect the installation process.

3.2 Safety Measures

Safety is paramount during both the installation and removal of SAG mill liners. Workers should follow all established safety protocols, including:

Wearing personal protective equipment (PPE) such as helmets, gloves, and safety glasses.

Using proper lifting techniques when handling heavy liners.

Ensuring that the mill is properly secured and locked out to prevent any unexpected movements during installation or removal.

3.3 Tools and Equipment

The following tools and equipment are required for the successful installation and removal of SAG mill liners:

3.4 Material Inspection

Before installing new liners, it’s crucial to inspect them for any defects or damage that might have occurred during shipping or storage. Liners should be checked for:

Cracks or chips

Deformations or bends

Material inconsistencies

Any defective liners should be replaced before starting the installation.

4. Step-by-Step Process of Installing SAG Mill Liners

The installation of SAG mill liners involves several detailed steps, each critical to ensuring that the liners are correctly positioned and secured.

4.1 Step 1: Clean and Inspect the Mill Shell

Before installing the new liners, the mill shell should be thoroughly cleaned to remove any debris, residue, or worn-out material from previous liners. The shell should also be inspected for any damage that may need repair before liner installation.

4.2 Step 2: Position the Liners

Once the mill shell is prepared, the liners should be carefully positioned within the mill shell. Proper alignment of the liners is crucial to prevent misalignments that can affect mill efficiency. Ensure that each liner fits snugly and that all attachment points align correctly.

4.3 Step 3: Securing the Liners

After positioning the liners, they must be securely attached to the mill shell. This can be done using bolts, welds, or other fastening methods depending on the design of the mill and the liners. Bolt-tightening should be done in a systematic manner to ensure even pressure distribution and proper liner seating.

4.4 Step 4: Tightening and Final Checks

Once the liners are secured, the bolts should be tightened using a torque wrench to the specified torque value. It’s important to check each bolt after tightening to ensure that the liners are securely fastened and that there are no gaps or misalignments.

4.5 Step 5: Testing the Installation

After the liners are installed and the mill is reassembled, a test run should be conducted to verify the installation. During the test, the mill’s performance should be closely monitored to check for any irregularities, unusual vibrations, or noises that might indicate an issue with the liner installation.

5. Step-by-Step Process of Removing SAG Mill Liners

The removal of SAG mill liners requires careful attention to safety and technique to avoid damage to both the liners and the mill shell.

5.1 Step 1: Safety Precautions

Before removing the liners, ensure that all necessary safety protocols are in place. This includes locking out the mill to prevent accidental startup and ensuring that all workers are wearing appropriate PPE.

5.2 Step 2: Inspecting the Condition of the Liners

Examine the liners to determine the extent of wear and whether they need to be replaced. If the liners are excessively worn or damaged, it’s essential to replace them to avoid further operational issues.

5.3 Step 3: Loosening the Liners

The next step is to loosen the bolts or fastenings holding the liners in place. This is done by using the appropriate bolting tools, such as wrenches or impact drivers. Care should be taken to loosen the bolts evenly to prevent damage to the mill shell.

5.4 Step 4: Removing the Liners

Once the bolts are loosened, the liners should be carefully removed. This may require the use of hoists or cranes to lift the liners out of the mill shell without causing any damage.

5.5 Step 5: Cleaning the Mill Shell

After the liners are removed, the mill shell should be cleaned again to ensure that it is free of any debris or residue before installing new liners.

6. Factors to Consider During SAG Mill Liner Installation and Removal

Several factors must be taken into account when installing and removing SAG mill liners to ensure the process is successful and efficient:

6.1 Liner Material and Compatibility

The material used for the liners should be compatible with the specific mill and the type of ore being processed. The liner material affects the wear rates and overall performance of the mill.

6.2 Wear and Tear

The condition of the liners should be carefully monitored throughout their lifespan. Timely removal and replacement are necessary to avoid excessive wear that could negatively impact mill performance.

6.3 Mill Type and Configuration

Different types of SAG mills may require different installation methods. The configuration of the mill (e.g., shell size, liner type) will affect how the liners are installed and removed.

6.4 Mill Downtime

Minimizing downtime during installation and removal is essential to reduce the disruption of mill operations. Efficient planning, safety precautions, and proper equipment can significantly shorten this time.

7. Common Challenges in SAG Mill Liner Installation and Removal

Some common challenges encountered during the installation and removal of SAG mill liners include:

• Misalignment: Proper liner alignment is critical for efficient grinding. Misalignment can result in uneven wear and reduced mill performance.

• Damaged Liners: Liners may get damaged during handling or installation. Careful inspection before and after installation is necessary to avoid issues.

• Complex Handling: Liners are often heavy and difficult to maneuver, requiring specialized equipment and proper handling techniques.

8. Conclusion

The installation and removal of SAG mill liners are critical for maintaining the efficiency, safety, and lifespan of your mill. Proper planning, the right tools, and adhering to safety protocols are essential to ensuring these tasks are completed successfully. By understanding the steps involved and the factors that influence liner performance, you can optimize your mill operations and reduce costly maintenance downtime.

At Strudex Tech, we specialize in providing high-quality SAG mill liners tailored to your specific operational needs. Our team of experts ensures that your mill’s performance is maximized through our precision-engineered liners, designed for durability and reliability. Whether you're looking for assistance with liner installation, removal, or replacement, we are here to support you every step of the way.

For more information on how we can help optimize your milling operations and enhance liner performance, don't hesitate to contact us. Let Strudex Tech provide the expertise you need for a smoother, more efficient milling process.

9. FAQ

Q1: How long does it take to install SAG mill liners?

The time required for installing SAG mill liners depends on the size of the mill and the complexity of the liner design. On average, it may take several days, but proper planning can reduce this time significantly.

Q2: What tools are required for installing and removing SAG mill liners?

Tools such as cranes, hoists, bolting tools, pry bars, and torque wrenches are required for handling, securing, and tightening the liners. PPE is also essential for safety.

Q3: Can I install SAG mill liners myself, or should it be done by professionals?

Professional installation is highly recommended to ensure proper alignment, secure fastening, and overall mill safety. However, with the right tools and expertise, it is possible to perform the task in-house.

Q4: How do I know when to replace SAG mill liners?

SAG mill liners should be replaced when they show signs of excessive wear, including uneven wear patterns, cracks, or significant damage. Regular inspections are essential to determine the optimal replacement time.

Q5: What are the risks of improper SAG mill liner installation?

Improper installation can lead to liner misalignment, uneven wear, increased vibration, and overall reduced mill performance. This can lead to higher maintenance costs and potential damage to the mill shell.
