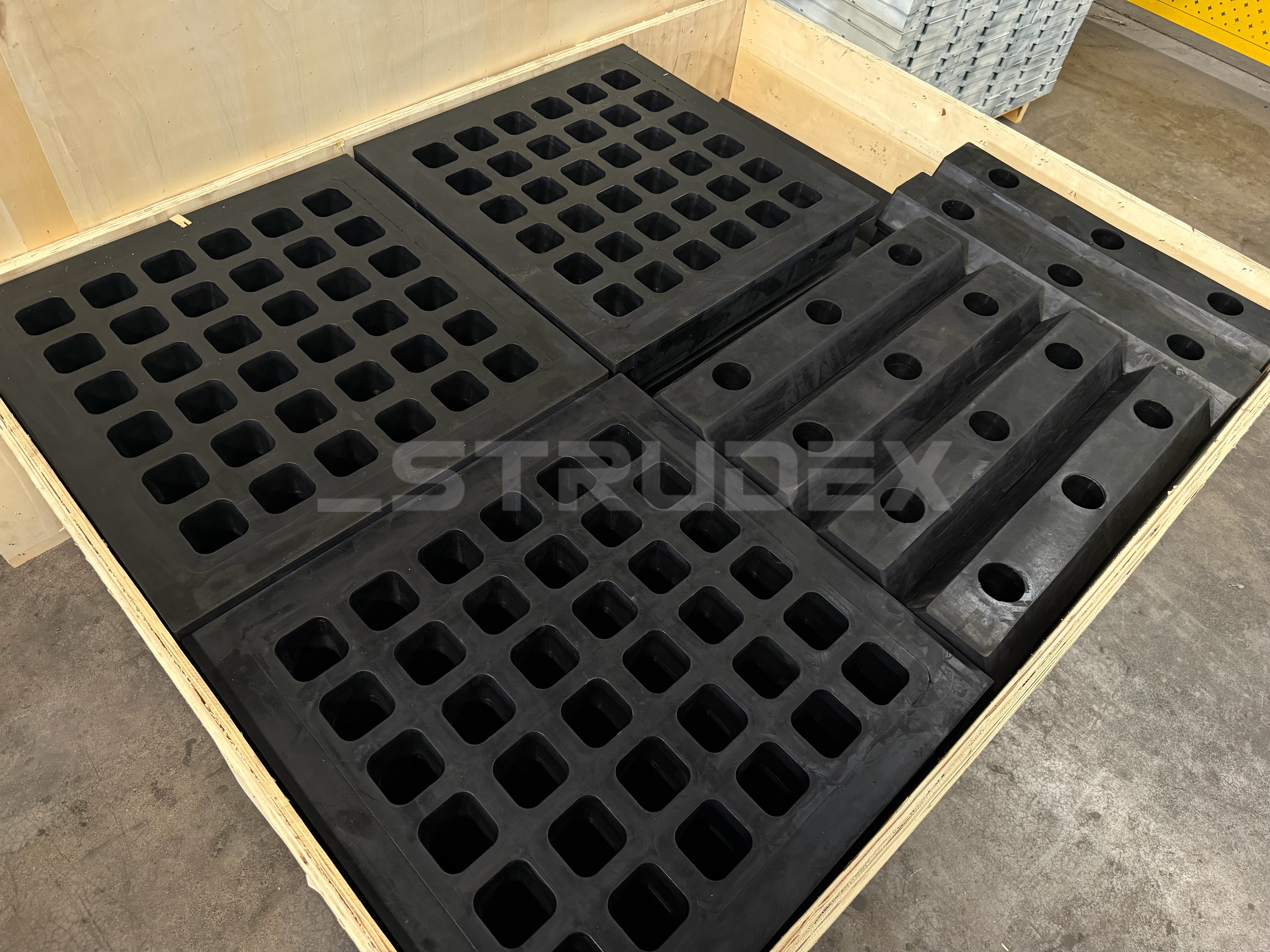

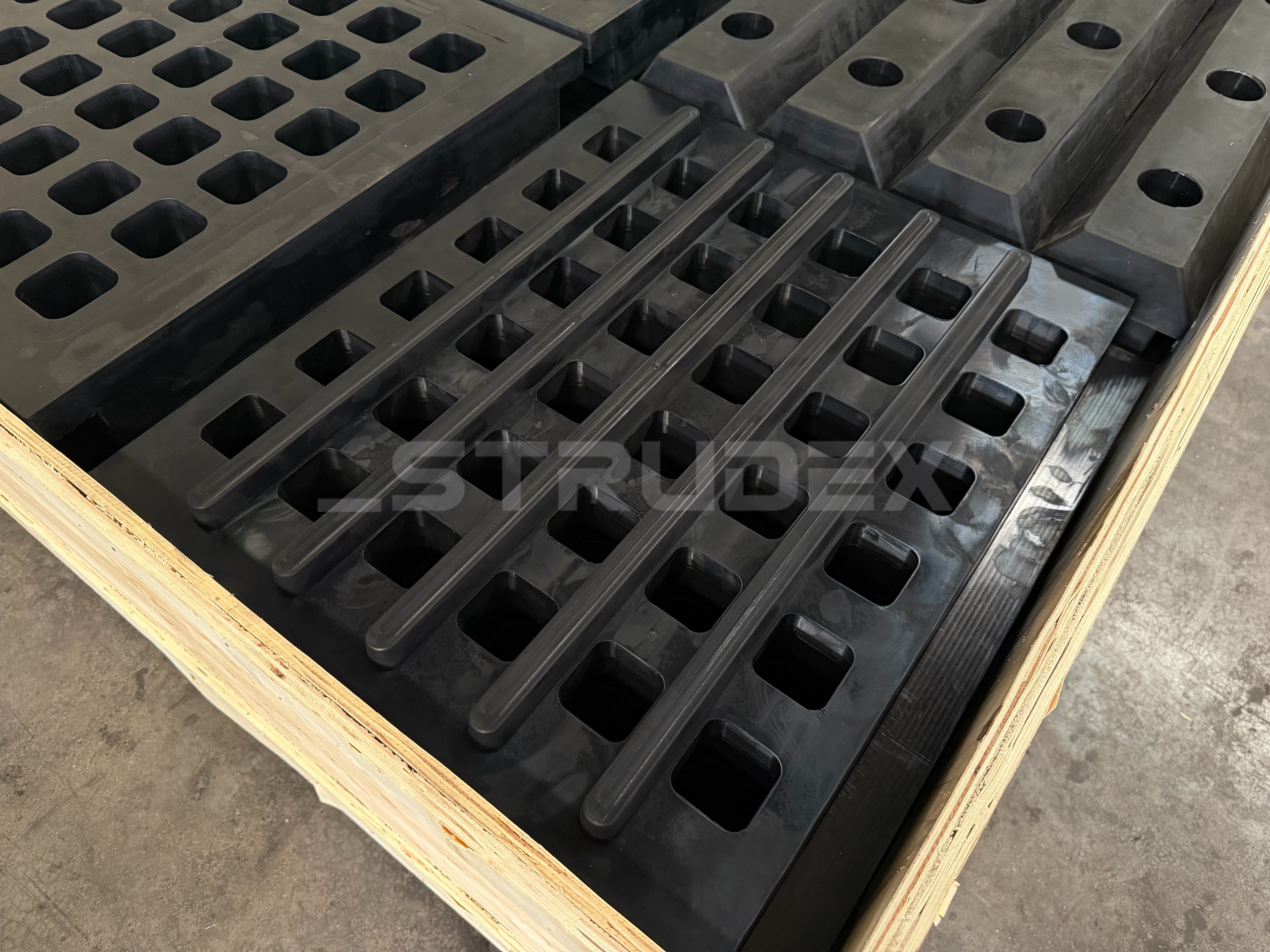

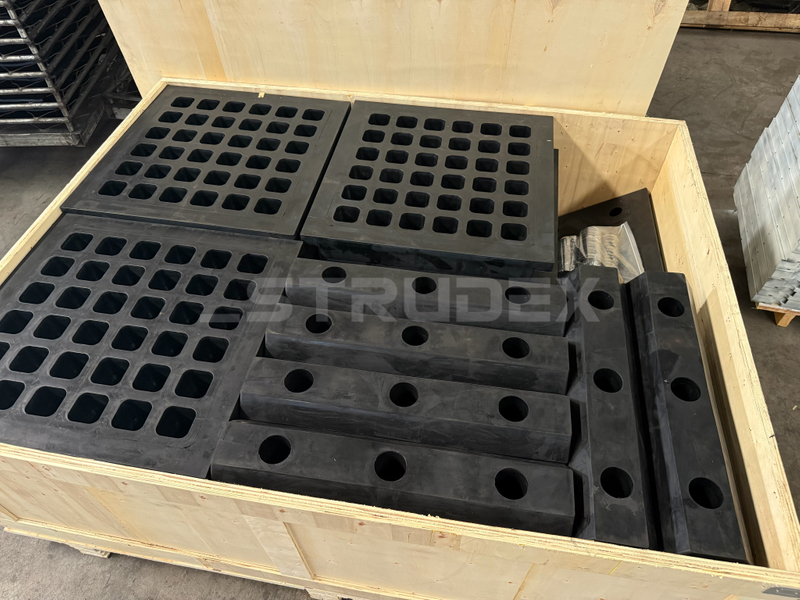

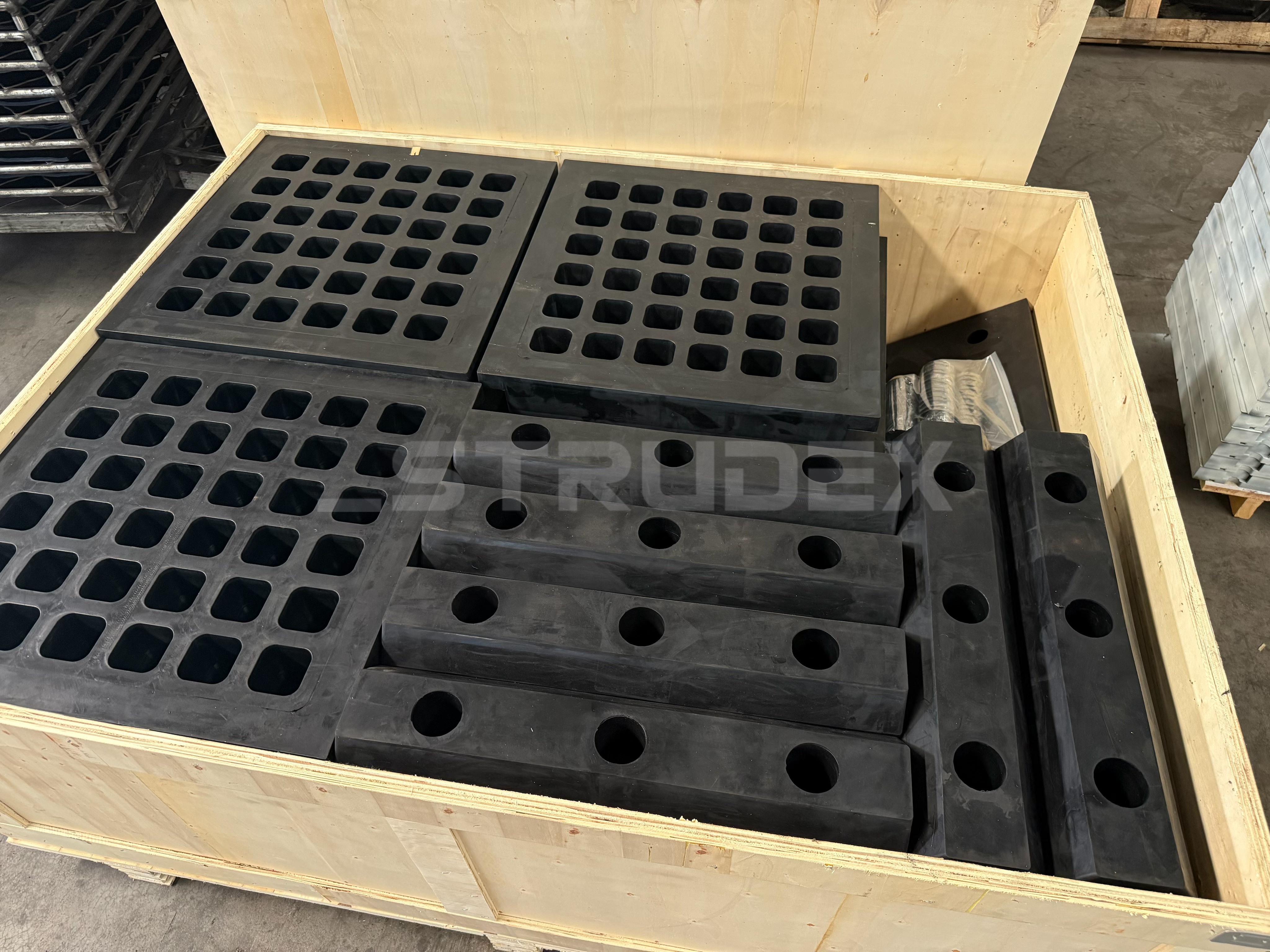

Durable Rubber Screen Panels for Heavy-Duty Primary Screening

Strudex heavy-duty rubber panels provide a resilient screening surface for coarse material discharged from a crusher. In this primary screening duty, the surface must receive particle impact and continue to separate the required fraction as material travels over it. The useful configuration combines rubber response, opening geometry and support around that post-crusher contact duty.

Technical Parameters

The surface receives impact and then performs separation

Coarse particles first meet the working surface and then move within the material bed. Rubber can deform locally under contact and recover, giving a different response from a rigid surface. That resilience is relevant to impact, but the panel also needs useful apertures and an appropriate supporting arrangement. Surviving contact and maintaining the sizing function are linked requirements of the same component.

1. At first contact, the incoming trajectory and drop determine where the load reaches the panel. A concentrated stream can create a local duty much more severe than the average loading across the deck.
2. As material spreads, the surface encounters repeated particle contact and abrasion. The selected construction must retain enough useful opening geometry for the intended operating period.
3. Particles small enough to pass need access to apertures. Bed coverage, near-size material and adhering fines can reduce that opportunity even when the rubber surface remains largely intact.
4. The two output streams reveal the separation achieved. Enlarged openings and retained undersize describe different product problems and should be related to the surface condition rather than combined into one efficiency label.

Impact duty is defined by the contact, not just the ore name

These features make the post-crusher location important. The panel is receiving material after crushing; it is not being described as a pre-crusher grizzly or as protection against every uncrushable object. Defining that position keeps the material choice connected to the particle contact it is intended to face and prevents a general heavy-duty label from replacing the actual duty specification.

Rubber section and aperture must be chosen together

The working section supplies both wear material and the depth through which particles pass. A thickness change therefore affects more than the amount of rubber available to wear. Compound stiffness and the support geometry also influence local movement. The objective is a supported surface that responds to the contact while preserving the selected opening behaviour, not simply the thickest or hardest possible panel.

• For repeated impact, define where the load lands and how the panel is supported at that position. Material resilience and local geometry need to address the same contact event.
• For abrasive travel, consider where gradual surface loss can alter the opening edges or the surrounding section. An average thickness can conceal the local feature that controls replacement.
• For near-size blockage, review particle shape and aperture geometry alongside rubber movement. A flexible surface can help release some lodged particles, but the selected passage still matters.
• For damp fines, identify coating and clay rather than assuming the obstruction is a wedged stone. A different mechanism may require a different surface and operating review.

Preserve the product-controlling geometry

A useful panel decision combines these product effects with the loading pattern. Local damage from an exceptional object, gradual wear in a stable duty and a change in feed distribution are different reasons for renewal. Identifying them makes the next rubber configuration specific to the application instead of assigning every shortened interval to a material-quality difference.

Define the coarse-discharge configuration

Specify the post-crusher screening position, panel geometry and mounting arrangement, then describe the solids distribution, credible maximum lump, drop, feed rate and required fraction. Include moisture and the observed contact pattern. Numerical hardness, reinforcement and fixing details must belong to that selected configuration; a related catalogue family does not establish them for this panel. This preserves the product’s clear purpose: a resilient working surface for impact and abrasion in coarse crusher-discharge screening.

Product FAQ

Where is this heavy-duty rubber panel intended to work?

It is intended for primary screening of coarse material discharged from a crusher, where repeated particle impact and abrasion occur together. Define the feed size distribution, credible maximum lump, drop height and required separation so the panel construction can be assessed for that specific position.

Does the heavy-duty description establish a particular thickness or hardness?

Those values must be defined for the selected panel configuration. Describe the feed contact, support arrangement and required aperture behavior, then agree the material and geometry for the order. A heavy-duty label alone does not identify an internal frame, fixing standard or numerical rubber grade.

Why might one side of the primary deck wear much faster?

Uneven feed distribution or a concentrated incoming trajectory can load one area more heavily. Relate operating observations to the shutdown wear map and inspect the supports beneath the affected region. Review that loading pattern alongside the panel specification before treating the difference solely as a rubber-quality problem.

What should be inspected besides remaining rubber thickness?

Check aperture enlargement, torn edges, blocked areas, seating, supports and the actual retaining arrangement. Compare the separated streams as well as the surface condition. A panel may retain substantial rubber while enlarged openings affect grading, or show local damage associated with a support problem.
