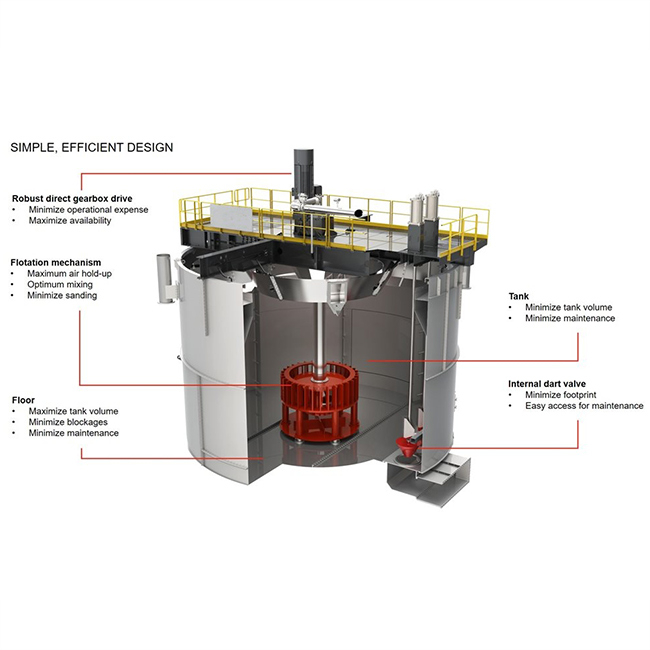

At Strudex, we understand that the efficiency of a flotation cell begins with the interaction between the rotor-stator and the slurry. Traditional one-size-fits-all designs often lead to premature wear and suboptimal performance. Our engineering team has taken a radically different approach by integrating the direction of pulp flow directly into the design DNA of our products.
The most common failure point in conventional rotors and stators is uneven wear caused by the abrasive nature of the slurry. To address this, Strudex engineers have pioneered a unique thick-and-thin vane design. By meticulously analyzing the flow patterns and identifying high-impact zones where the slurry exerts the most force, we strategically vary the thickness of the blades.
The areas subjected to higher wear receive a thicker, more robust rubber layer, while other areas maintain a streamlined profile to optimize flow dynamics. This "differential encapsulation" method ensures that the wear life of the component is balanced across the entire surface, preventing premature failure in specific hotspots and significantly extending the operational lifespan of the assembly.
2. Finite Element Analysis (FEA) and Wear Simulation
Conceptual design is only the beginning. Before a single piece of metal is cut, every Strudex rotor and stator undergoes rigorous virtual testing. Utilizing advanced Finite Element Analysis (FEA) and sophisticated wear simulation software, we model the stresses, strains, and abrasive forces the equipment will face in real-world conditions.
This digital prototyping allows us to:
- Optimize Structural Integrity: Ensure the metal skeleton can withstand torsional forces and mechanical stress without deformation.
- Refine Fluid Dynamics: Fine-tune the geometry to create the ideal vortex and air dispersion for maximum bubble-particle collision.
- Predict Wear Patterns: Validate our asymmetric vane design by simulating years of operation in a matter of hours, allowing us to perfect the design before manufacturing begins.
Only after passing these stringent virtual tests does a design move to the physical prototyping and finalization stage, guaranteeing that the product you receive is optimized for both performance and durability.
A superior design is only as good as its construction. The Strudex rotor and stator are built to survive the harshest conditions, combining a high-strength metal skeleton with high-abrasion-resistant rubber.
The foundation of our product is a fabricated metal skeleton, designed to provide the necessary rigidity to maintain precise clearances within the flotation cell.
- Advanced Cutting: We utilize state-of-the-art flame cutting technology to ensure accurate blanking of steel plates, providing a perfect fit for the assembly process.
- Strict Welding Protocols: The components are assembled and welded following stringent, certified welding procedures. This ensures that the skeleton maintains its structural integrity under the immense dynamic loads of operation.
- Dynamic Balancing: Perhaps the most critical step in the manufacturing process is the dynamic balancing test. Every Strudex rotor skeleton is individually tested and corrected using precision dynamic balancing equipment. This eliminates vibration, reduces stress on the drive train, and ensures whisper-quiet, smooth operation even at high speeds.
The metal skeleton is encapsulated with our specially formulated, high-grade wear-resistant rubber. This rubber compound is chosen for its exceptional resistance to both abrasion and corrosion, protecting the internal structure while providing a smooth surface that discourages material buildup.
By choosing Strudex rotors and stators, you are investing in the long-term efficiency and profitability of your operation. Here is what sets our products apart:
1. Exceptional Balance and Smooth Operation: Thanks to our rigorous dynamic balancing protocols, our rotors run with minimal vibration. This protects the drive mechanism, reduces energy consumption, and creates a stable flotation environment.
2. Superior Durability: The combination of our robust metal skeleton, high-grade rubber compound, and unique thick-and-thin vane design results in components that stand up to wear and corrosion far longer than standard offerings, reducing downtime and maintenance costs.
3. Optimized Flow Characteristics: The streamlined, scientifically optimized design ensures consistent slurry flow and optimal air dispersion, which is critical for maximizing bubble-particle contact and achieving the best possible flotation recovery.
4. Enhanced Flotation Performance: Ultimately, our design and construction are focused on one goal: guaranteeing superior flotation performance. You can expect improved recovery rates, better concentrate grades, and more consistent cell performance.
5. Lightweight and User-Friendly: Despite their robust construction, our designs prioritize ease of handling. The optimized structure results in a lighter weight compared to many conventional models, making installation and maintenance safer, faster, and less labor-intensive.
6. Comprehensive Product Range: Strudex offers a full range of sizes and configurations to suit virtually every flotation machine make and model on the market. Whether you need a replacement for a specific cell or a complete set for an entire bank, we have the solution.
At Strudex, we believe that excellence is in the details. From the initial computational fluid dynamics to the final dynamic balance check, every step in the creation of our flotation mechanism parts is driven by a commitment to quality and performance. Upgrade your flotation circuit with Strudex rotors and stators and experience the difference that precision engineering and superior construction can make.
