Rubber Filling Segments for Grinding Mills: Comprehensive Product Overview

In the demanding environment of mineral processing, grinding mills operate under extreme conditions of impact, abrasion, and continuous stress. While much attention is given to major mill components such as shell plates, lifter bars, and grate plates, the smaller yet equally critical components often determine the overall reliability and performance of the entire grinding circuit. Among these essential components are rubber filling segments—precision-engineered elements that play a vital role in maintaining mill integrity and operational efficiency.

Filling segments, also known as filler blocks or filler strips, are mill components used to fill gaps, provide cushioning, and absorb vibration between liner parts inside grinding mills. These segments are designed to lock head plates and grate plates into position and prevent material from racing in the corners of the mill. While they may appear to be simple components, filling segments are fundamental to the proper functioning and longevity of the entire mill lining system.

This article provides a comprehensive overview of rubber filling segments for grinding mills, exploring their design, function, material considerations, and the critical advantages of customized rubber formulations.

What Are Rubber Filling Segments?

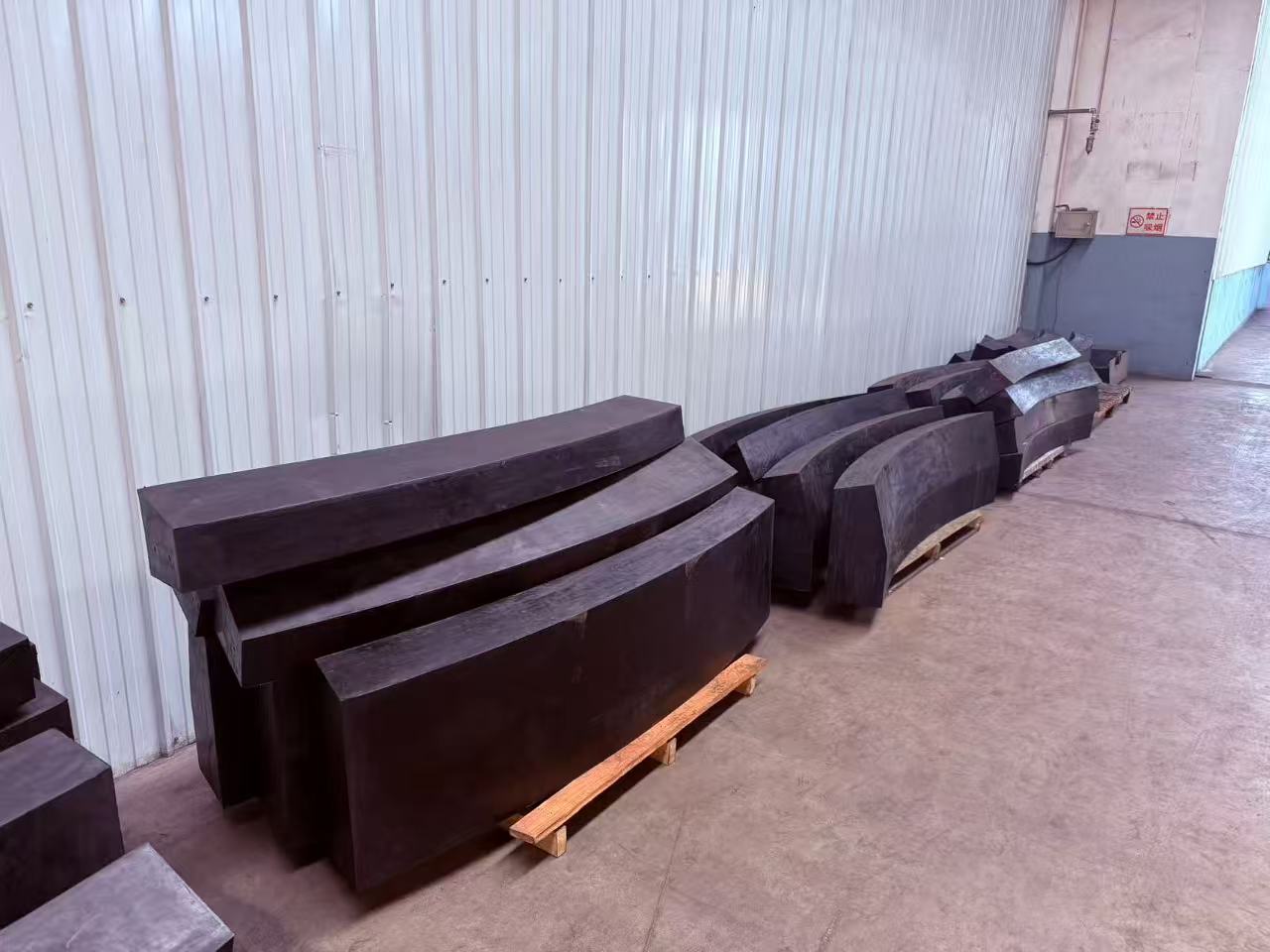

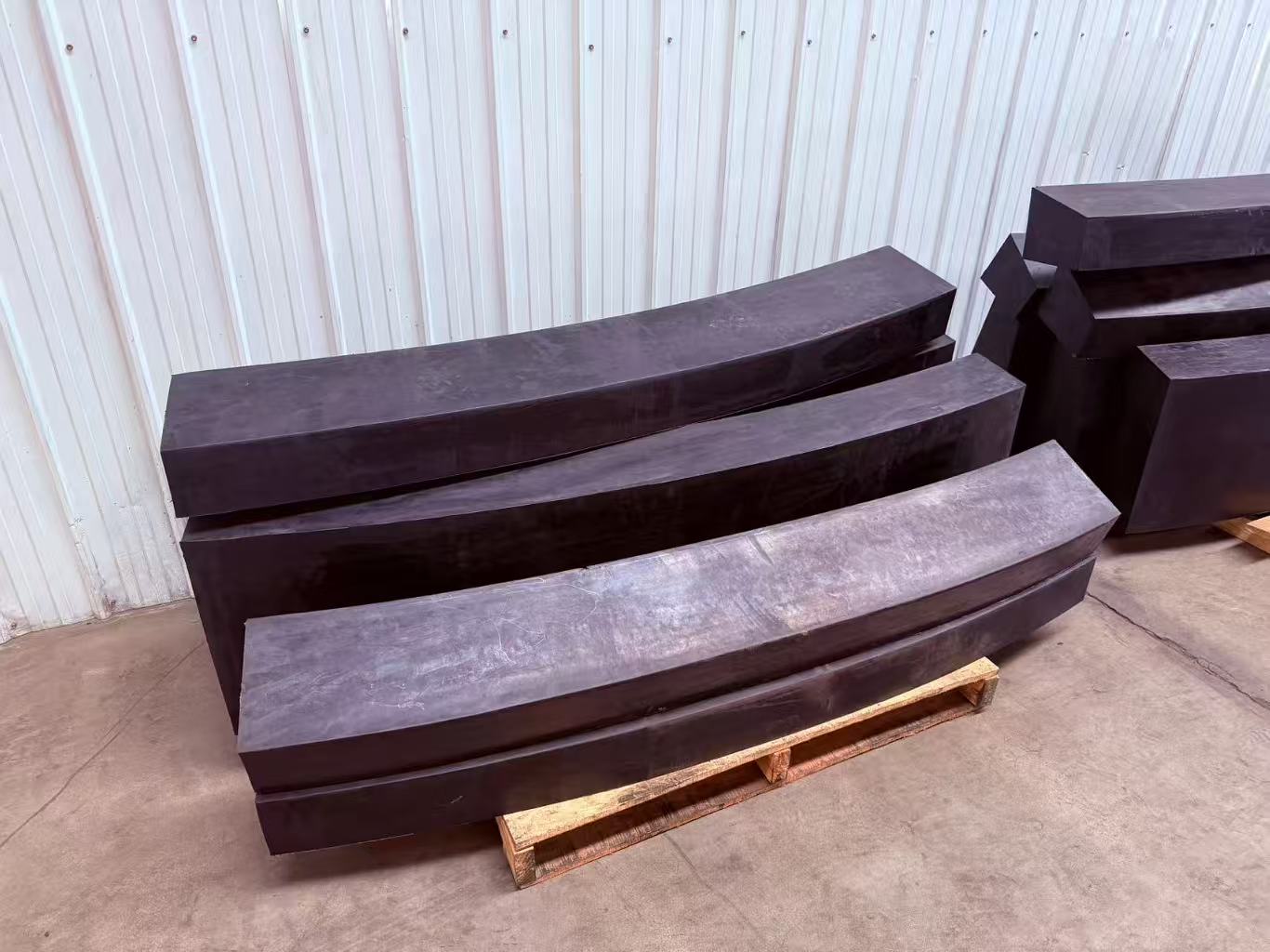

Rubber filling segments are precision-molded components installed between the lining plates of grinding mills. They serve as the connective tissue of the mill lining system, filling the gaps that naturally exist between adjacent liner plates and at the transitions between different sections of the mill.

The filling segment is used between the lining plate of the feed end and the lining plate of the cylinder body, primarily to fill the gap and prevent grinding media and material from damaging the mill shell. Without proper filling segments, the mill shell would be exposed to direct impact and abrasion from the grinding media and ore, leading to accelerated wear, structural damage, and costly unplanned downtime.

In a typical mill lining configuration, filling segments are installed alongside other rubber components including shell plates, lifter bars, head plates, grate plates, and pulp lifters. The complete system works together to protect the mill shell while optimizing grinding performance.

Core Functions of Rubber Filling Segments

Gap Filling and Shell Protection

The primary function of filling segments is to fill the gaps between liner plates. During mill operation, grinding media and ore slurry can work their way into even the smallest gaps between liners. Once material penetrates behind the liners, it begins to abrade the mill shell—a situation that, if left undetected, can cause excessive wear to the mill's rotating components. Rubber filling segments create a continuous barrier that prevents this material ingress, protecting the mill shell from premature wear.

Liner Locking and Positioning

Filling segments are designed to lock head plates and grate plates into position. By filling the spaces between adjacent liners, these segments prevent liner movement during operation. The constant tumbling motion of grinding media and ore creates significant forces that can shift improperly secured liners. Properly installed filling segments maintain liner alignment, ensuring that the entire lining system remains intact and functional throughout its service life.

Shock Absorption and Vibration Damping

Rubber filling segments provide excellent shock absorption, reducing vibration between liner parts. The elastic properties of rubber allow these components to absorb impact energy from falling grinding media and ore, protecting both the liners and the mill shell from excessive stress. This shock-absorbing capability extends the service life of adjacent liner components and reduces the overall stress on the mill structure.

Material Flow Control

Filling segments also play a role in controlling material flow within the mill. By filling corner areas and eliminating gaps where material could accumulate or race, these components help maintain proper material flow patterns. This contributes to more efficient grinding and prevents localized wear that can occur when material is channeled into unprotected areas.

Why Rubber?

Rubber has become the material of choice for filling segments and other mill lining components for several compelling reasons. Rubber linings can often be made thinner than other types of lining, and in such cases, the increased mill diameter will increase the capacity. Rubber linings of the correct quality and design will always give improved lining economy.

Impact Resistance

Rubber is an excellent material for use against high wear and tear areas of mineral processing in mills. The resilience of rubber cushions the impact of materials in the mill on metal elements, while the vulcanized rubber sections reduce and control cracking, even when the liner has worn quite thin. This impact resistance is particularly valuable in large mills where grinding media create substantial forces.

Abrasion Resistance

Modern rubber compounds are engineered for exceptional abrasion resistance. Premium rubber compounds deliver measurable increases in wear life, with some advanced formulations achieving up to 25% longer wear life compared to conventional rubber. This abrasion resistance translates directly into longer service intervals and reduced maintenance costs.

Weight Reduction

Rubber components are significantly lighter than their steel counterparts. This weight reduction results in less load on the mill bearings and less stress on the mill heads. Lighter components are also easier and safer to handle during installation and replacement, reducing the risk of injuries and speeding up maintenance activities.

Noise Reduction

Rubber acts as a vibration damper and noise filter. When a rubber lining has a thickness of 40 mm, it is able to reduce noise levels significantly. This noise reduction improves working conditions for plant personnel and helps operations comply with increasingly stringent occupational health and safety regulations.

Sealing Properties

Rubber provides excellent sealing properties, reducing the risk of material flushing behind the lining and eliminating leakage through bolt-holes. This sealing capability is essential for preventing the gradual shell erosion that can occur when slurry penetrates behind the liners.

The Importance of Rubber Compound Selection

Not all rubber is created equal. The performance of rubber filling segments depends critically on the specific rubber compound used in their manufacture. Different ores, grinding conditions, and mill configurations demand different rubber properties.

Rubber mill liners are manufactured from specially formulated rubber compounds, which are blends of natural and synthetic rubbers. The formulation of these compounds determines key performance characteristics including hardness, tensile strength, elongation at break, tear strength, and abrasion resistance.

The Challenge of Off-the-Shelf Solutions

Many suppliers offer standardized rubber compounds that are designed to perform adequately across a broad range of applications. While these off-the-shelf solutions may be convenient, they rarely deliver optimal performance in specific operating conditions. An ore that is highly abrasive requires a different rubber formulation than one that is less aggressive. A mill operating at higher temperatures demands a compound with different thermal properties. A mill processing wet ore faces different wear mechanisms than one processing dry material.

The assumption in a mill lining application is that modifying the chemistry of the rubber will result in improvements in physical, mechanical, and wear properties. Field tests have demonstrated that optimized rubber compounds can deliver at least a 20% increase in wear life.

Our Approach: Custom-Engineered Solutions

What sets our filling segments apart is our commitment to custom-engineering each solution to match the specific conditions of each customer's operation.

Site-Specific Formulation

We recognize that no two grinding mills operate under identical conditions. Ore type, feed size, grinding media characteristics, mill speed, temperature, and moisture content all influence the wear mechanisms that affect mill liners. Rather than offering a one-size-fits-all product, we work closely with our customers to understand their specific operating conditions and develop rubber compounds that are optimized for those conditions.

Our technical team analyzes factors including:

- Ore abrasiveness and hardness

- Grinding media size and composition

- Mill operating speed and throughput

- Temperature range during operation

- Wet or dry grinding conditions

- pH levels and chemical environment

Based on this analysis, we formulate rubber compounds with precisely the right balance of hardness, abrasion resistance, tear strength, and elasticity for the specific application.

In-House Rubber Mixing

A key advantage of our approach is our in-house rubber mixing capability. We mix our rubber compounds internally rather than purchasing pre-compounded rubber from external suppliers. This gives us complete control over the formulation process and allows us to fine-tune compounds to meet specific performance requirements.

In-house mixing provides several critical benefits:

Quality Control: By controlling the entire mixing process, we ensure batch-to-batch consistency and maintain strict quality standards. Every batch of rubber compound meets our specifications before it is used in production.

Formula Flexibility: When a customer requires a unique formulation for a challenging application, we can develop and produce that formulation without relying on external suppliers. This flexibility allows us to respond quickly to customer needs and to develop innovative solutions for difficult applications.

Faster Response Times: In-house mixing eliminates the delays associated with ordering custom compounds from external suppliers. When a customer needs a specialized compound, we can develop and produce it on our own schedule.

Cost Control: By mixing our own rubber, we eliminate the markup that external compounders would add to the material cost. This cost saving is passed on to our customers.

Proprietary Formulations: In-house mixing allows us to develop and protect proprietary rubber compounds that deliver superior performance in specific applications. These formulations represent our accumulated knowledge and experience, refined through years of field testing and customer feedback.

Application-Specific Design

Beyond the rubber compound itself, we also customize the design of our filling segments to match the specific geometry and configuration of each customer's mill. Filling segments must fit precisely between adjacent liner plates to perform their gap-filling and locking functions effectively. Poorly fitting segments can lead to liner movement, material ingress, and accelerated wear.

Our design process considers:

- Mill type and size (SAG, AG, ball, rod, or pebble mill)

- Liner plate geometry and arrangement

- Installation and replacement requirements

Quality and Performance Standards

Our filling segments are manufactured to the highest quality standards, using premium materials and precision molding processes. Each segment is inspected to ensure it meets our stringent quality requirements before it is shipped to the customer.

Applications and Industries

Rubber filling segments are used across a wide range of grinding mill applications in the mining and mineral processing industries. Common applications include:

SAG and AG Mills

In semi-autogenous and autogenous grinding mills, filling segments help protect the mill shell from the impact of large ore particles and grinding media. The rubber's shock-absorbing properties are particularly valuable in these high-impact applications.

Ball Mills

Ball mills benefit from rubber filling segments that reduce noise, absorb vibration, and prevent material ingress behind the liners. Rubber linings in ball mills are found more efficient than steel linings in respect to capacity, fineness of grind, and power consumption.

Rod Mills

In rod mills, filling segments help maintain liner alignment and prevent the gaps that can lead to shell damage.

Installation and Maintenance Considerations

Proper installation is essential to the performance of rubber filling segments. Segments must be positioned correctly between liner plates and secured according to the manufacturer's specifications. The elastic property of rubber allows for smaller slots than steel grates whilst eliminating blinding problems.

Rubber mill linings are easily monitored and wear life is predictable. Some components can also be designed with wear indicators incorporated, making it easier to identify when the lining needs to be replaced.

When replacement becomes necessary, rubber components are significantly easier to handle than steel alternatives. The lighter weight of rubber segments reduces the physical demands on maintenance personnel and speeds up the change-out process.

Conclusion

Rubber filling segments may be among the smaller components of a mill lining system, but their contribution to mill reliability and performance is substantial. These precision-engineered components fill critical gaps, lock liners in position, absorb impact energy, and prevent material ingress that could damage the mill shell.

The performance of filling segments depends critically on the rubber compound from which they are manufactured. While off-the-shelf solutions may be adequate for some applications, optimized performance requires compounds that are specifically formulated for the conditions of each individual mill. Our in-house rubber mixing capability and commitment to custom formulation allow us to deliver filling segments that are precisely matched to each customer's operating conditions, maximizing service life and minimizing total cost of ownership.

For mill operators seeking to optimize their grinding circuit performance, attention to the quality and formulation of rubber filling segments represents a relatively small investment that can deliver significant returns in terms of extended liner life, reduced downtime, and improved mill availability.
