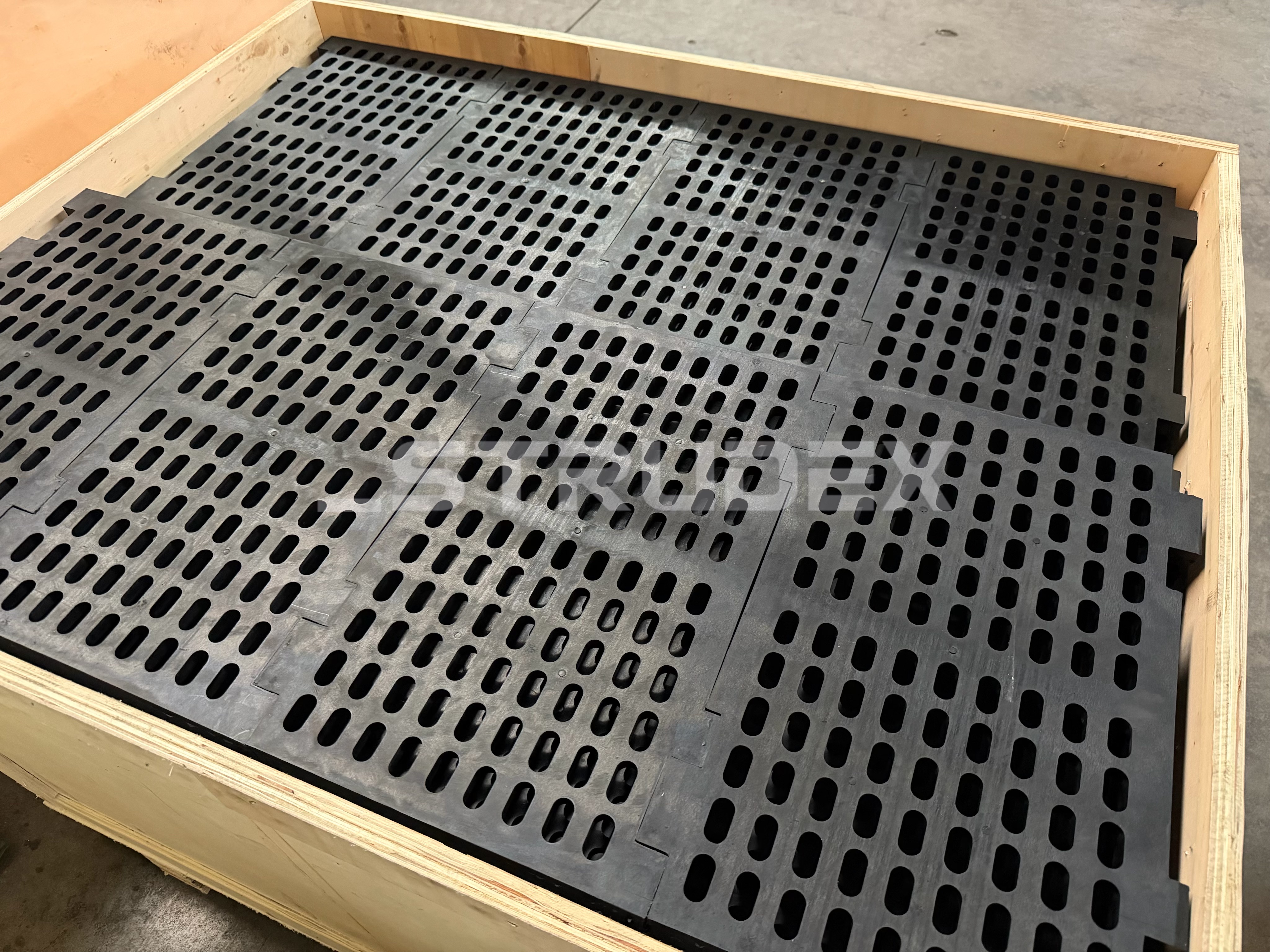

Strudex 15x30mm Snap-On Rubber Screen Panels: Precision Screening, Unmatched Efficiency

Strudex rubber screen panels with 15 × 30 mm apertures combine a defined screening opening with snap-on installation. The rubber working surface provides a flexible route for particle passage, while the mounting profile connects the section to its supports. The two aperture dimensions identify the separation geometry; the panel footprint and attachment geometry remain separate parts of the product configuration.

Technical Parameters

What a 15 × 30 mm aperture does

The opening presents two dimensions to the feed. A particle can pass when its shape and orientation allow it to travel through that passage; it can remain on the deck or become lodged when they do not. This is especially relevant to flat, elongated and near-size material. The aperture therefore belongs with a product grading requirement, not a promise of one perfectly sharp cut.

1. The feed forms a moving bed above the surface. Particles need access to an opening before the nominal aperture can contribute to separation; a covered region provides less useful opportunity.
2. A particle presents to the opening in a particular orientation. Its narrow and long dimensions can matter differently from those of a roughly equidimensional particle of the same nominal size.
3. The particle must travel through the opening depth. Panel thickness and the aperture profile influence that passage, so the two surface dimensions do not describe the whole route.
4. Material that does not pass continues with the retained stream. Compare both outputs with the required grading to distinguish intended retention from undersize that had insufficient screening opportunity.

Rubber flexibility is part of the working surface

The rubber can deform under contact and recover, allowing movement around the apertures as the deck works. This is the material characteristic behind its use where some near-size particles tend to remain wedged. The selected compound, thickness, support and machine conditions determine how that movement occurs; flexibility should be designed around the sizing duty rather than treated as an independent guarantee of an unblocked surface. When much of the feed is close to the aperture dimensions, more particles repeatedly approach the same openings. Particle shape and local surface movement then become especially relevant to maintaining a useful passage.

Two blockage mechanisms call for different choices

Pegging occurs when particles lodge in individual openings. Blinding occurs when adhering fines or other material cover the working surface. The same nominal aperture can experience either condition as the feed changes. The useful selection describes the obstruction itself, because a geometry that helps a wedged stone may not resolve a clay coating across the surrounding webs.

• Near-size pegging: identify the lodged particle and compare its shape with the opening. Include elongated and flaky material, opening orientation and passage depth before deciding whether a geometric change is justified.
• Wet-fines blinding: relate the coating to moisture, clay and feed changes. The rubber surface remains part of the response, but the incoming material and operating arrangement also determine how usable area develops.
• Blocked underside: connect the opening pattern with the supporting structure. An aperture above an obstructing member can retain material even when the visible top surface appears suitable.

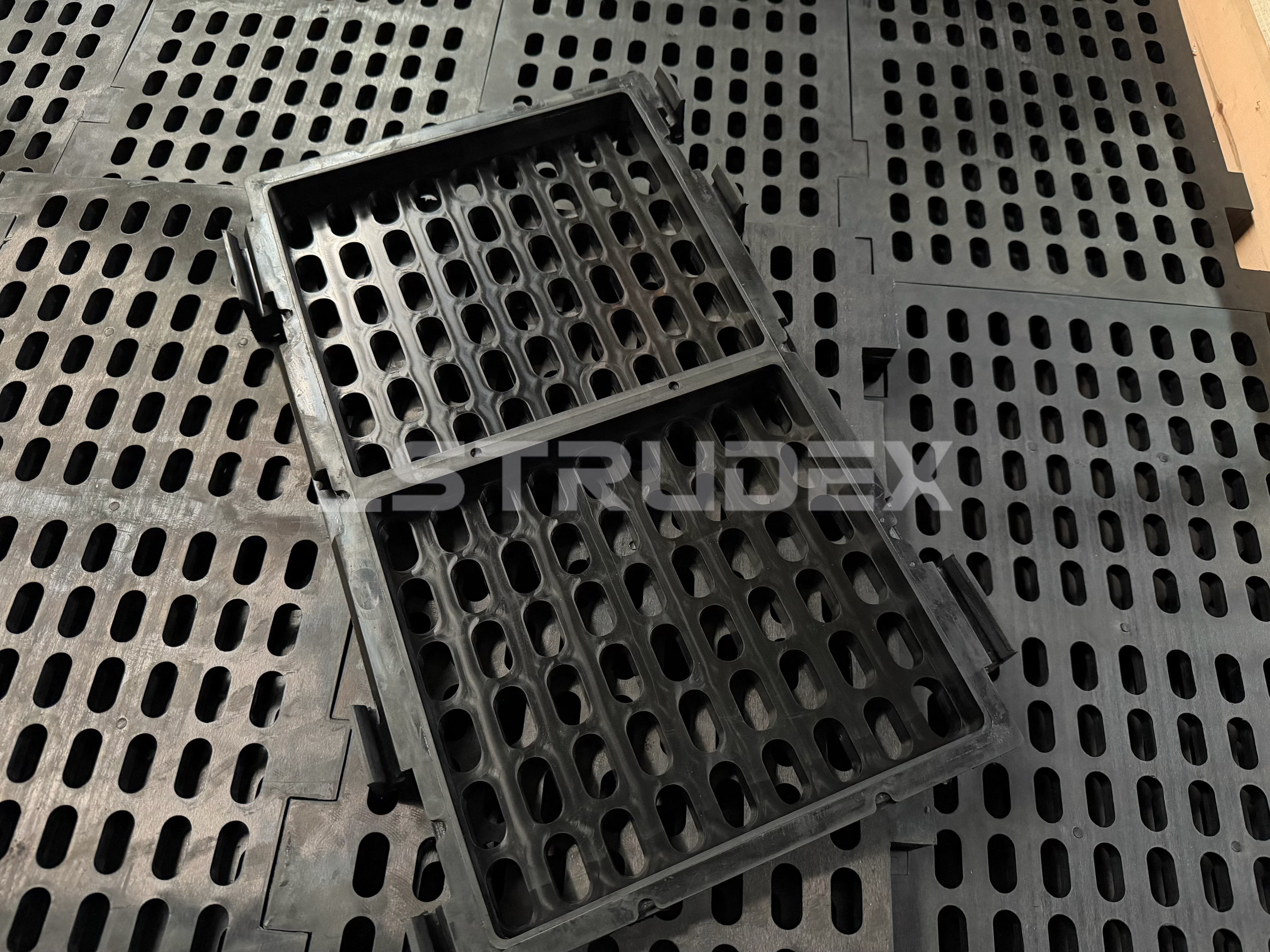

Snap-on attachment keeps the selected surface located

The attachment has a mechanical role: hold the working section at the intended position on a matching support. Its profile, engagement and panel edges need to describe the installed assembly. A correct aperture cannot compensate for a different mounting interface, and an outside footprint cannot establish that the snap-on features belong to the same system.

Choose the configuration that delivers an acceptable fraction

A useful comparison asks whether the panel provides usable passage while preserving the required product. A visually clearer surface or more passing material should agree with the output grading, especially where a different aperture, thickness or material is being considered. Specify the 15 × 30 mm opening, installed direction, panel form, snap-on interface and feed duty together. Keep the compound selection tied to that configuration instead of borrowing ambiguous dimensions from a catalogue model code.

Product FAQ

Does a 15 × 30 mm opening guarantee a 15 mm product?

The aperture dimensions do not establish a guaranteed separation curve. Particle shape, orientation, near-size content and the opportunity to reach the opening affect passage. Set the product grading requirement alongside the 15 × 30 mm opening, then check representative undersize and oversize samples after installation.

How can pegging be distinguished from wet-fines blinding?

Pegging appears as individual particles wedged in apertures; blinding forms an adhering coating across the surface or openings. Record the lodged material and feed condition during inspection. The distinction helps focus the review on particle geometry or on moisture and clay, without changing the aperture blindly.

What should stay controlled when comparing this panel with another medium?

Record the 15 × 30 mm aperture configuration, orientation, thickness, support arrangement and snap-on interface as well as the material. Keep feed and screen conditions comparable. Otherwise a change in geometry or loading can be attributed incorrectly to rubber flexibility or to the alternative material alone.

Why can correctly sized particles remain in the oversize stream?

They may have too little access to usable openings because of blockage, bed coverage or the supporting layout. Near-size content and operating conditions also matter. Inspect the working face and underside, then compare the output samples before concluding that the nominal aperture itself must be enlarged.
