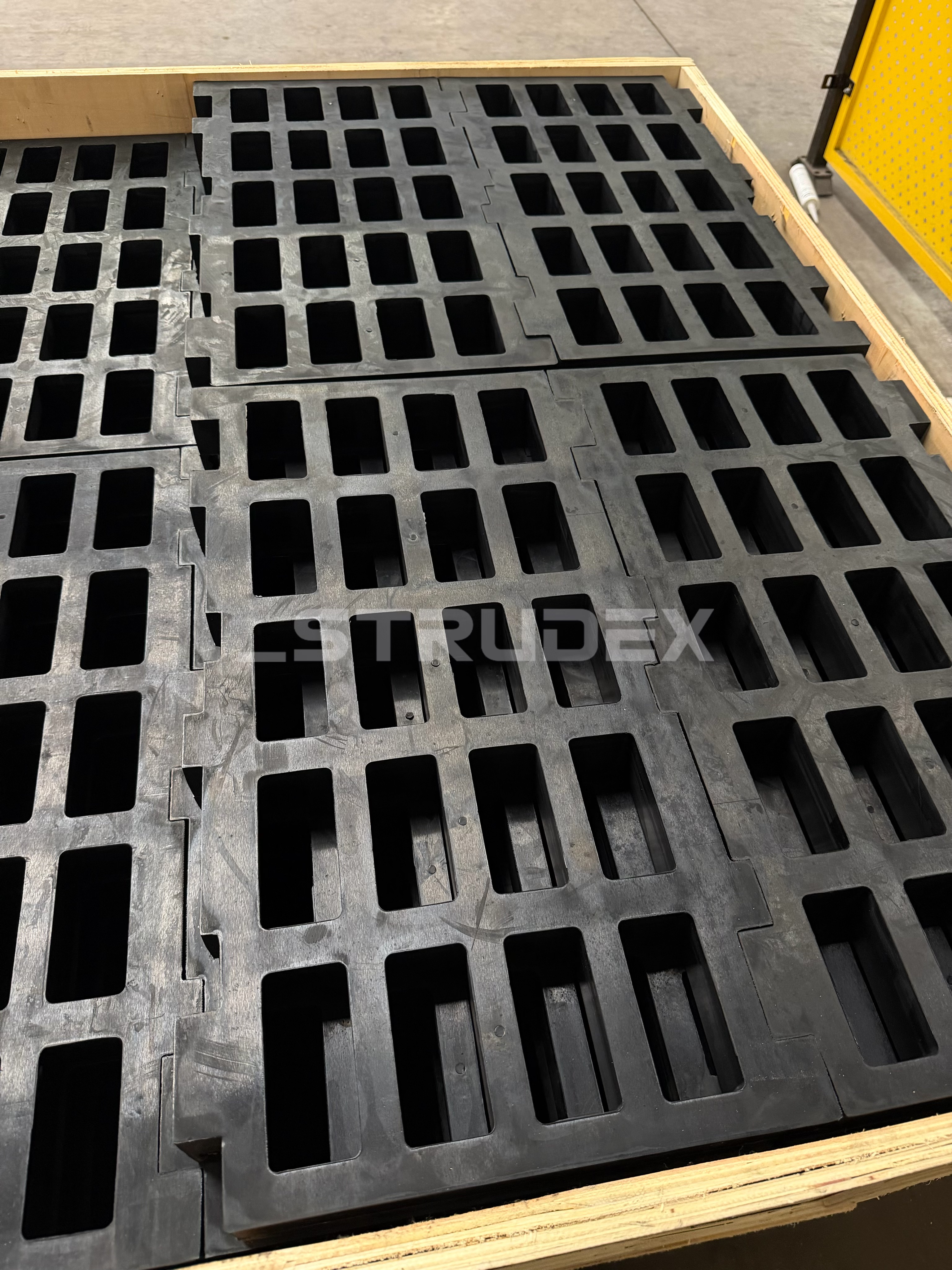

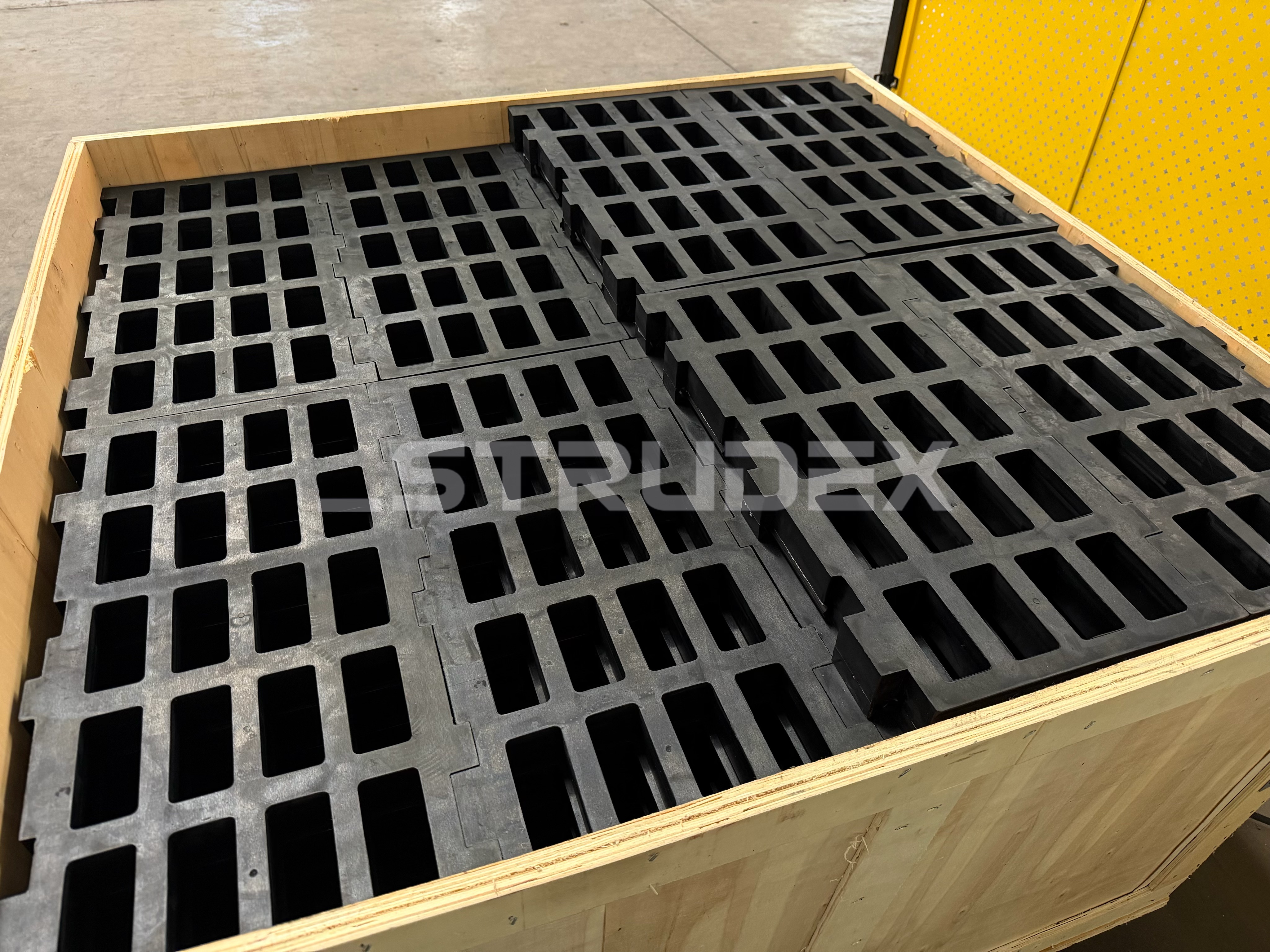

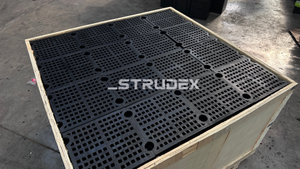

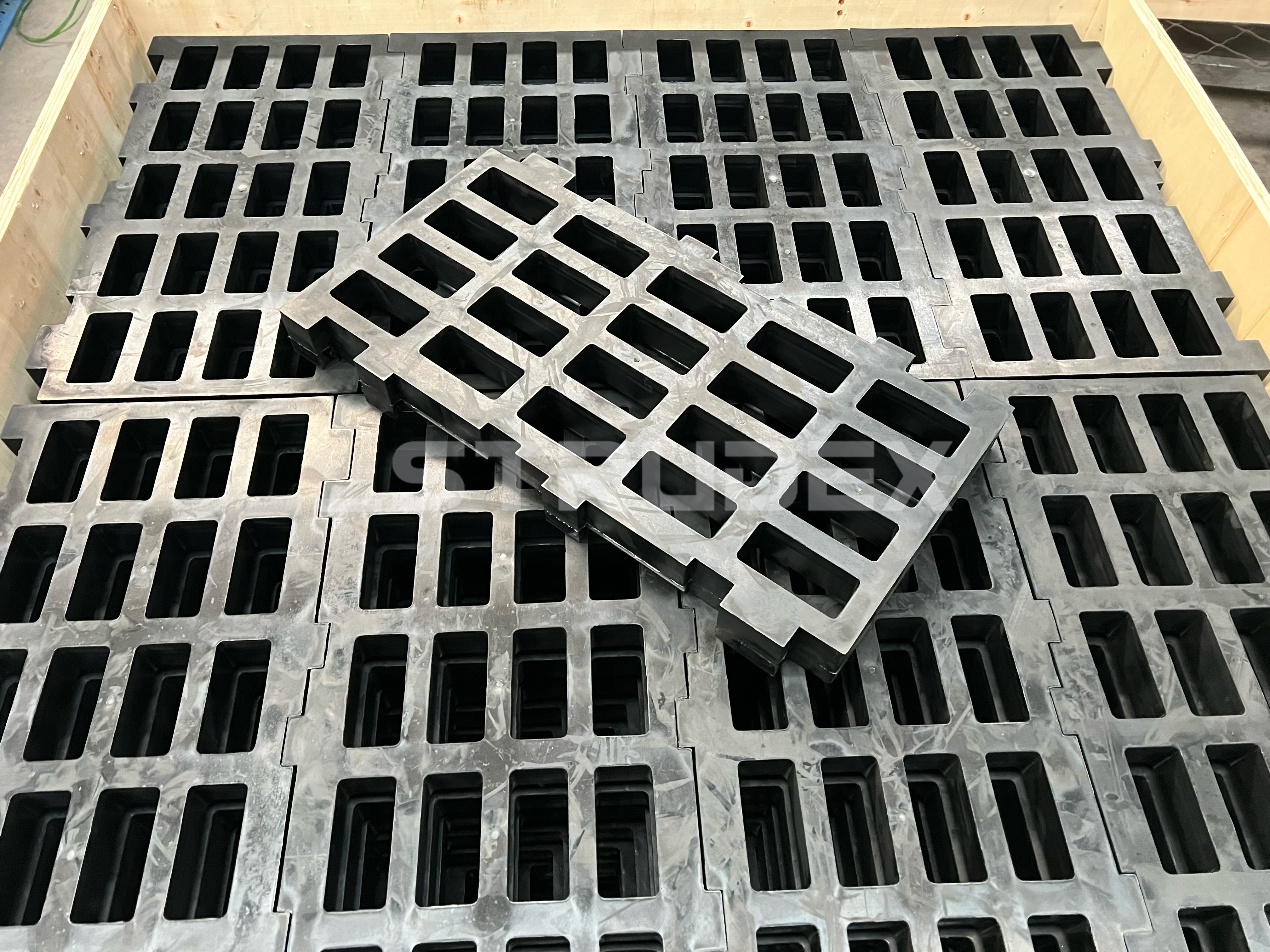

Strudex 45x95mm Snap-On Rubber Screen Panels: Efficiency Redefined

Strudex snap-on rubber screen panels feature 45 × 95 mm apertures for a defined sizing configuration. These dimensions describe the openings in the working surface, while the panel footprint, section and snap-on interface define the component that fits the deck. Rubber resilience provides a yielding contact surface; the aperture geometry and its installed orientation determine how the feed encounters the available passages.

Technical Parameters

The aperture has two dimensions and an installed direction

A 45 × 95 mm opening presents a different path to an elongated particle from a single equidimensional hole. The shorter dimension, longer dimension and orientation should remain visible on the panel drawing. Neither aperture dimension alone establishes the achieved product cut. Particle shape, thickness of the passage, bed coverage and screen conditions influence which particles reach an opening and pass through it.

Use resilience without sacrificing control of the fraction

Rubber can deform locally under particle contact and recover as loading changes. This provides cushioning where feed strikes the surface and movement around the openings that can assist particle release. The compound, rubber webs and supporting arrangement determine how that movement develops. The useful outcome is an open, retained screening surface making the required product, rather than flexibility considered as an isolated material benefit.

• Near-size particles: compare the lodged material with both opening dimensions and the installed direction. A particle that enters in one orientation can behave differently from an equidimensional piece. Rubber movement and passage geometry belong in the same assessment.
• Flat or elongated feed: define how much of that material is acceptable in the undersize. A long passage can admit particle orientations that a shorter opening treats differently. Review the product fraction before changing orientation or aperture shape to improve passage.
• Abrasive contact: examine the rubber webs and opening edges that retain the working geometry. Wear can alter the product before the panel loses secure retention. The new-opening reference should remain separate from measurements taken after a service period.
• Adhering fines: identify a coating over the face separately from individual pegged particles. Moisture, clay, washing and distribution can restrict usable area even when the original aperture size is correct. The selected rubber configuration should be assessed within that complete duty.

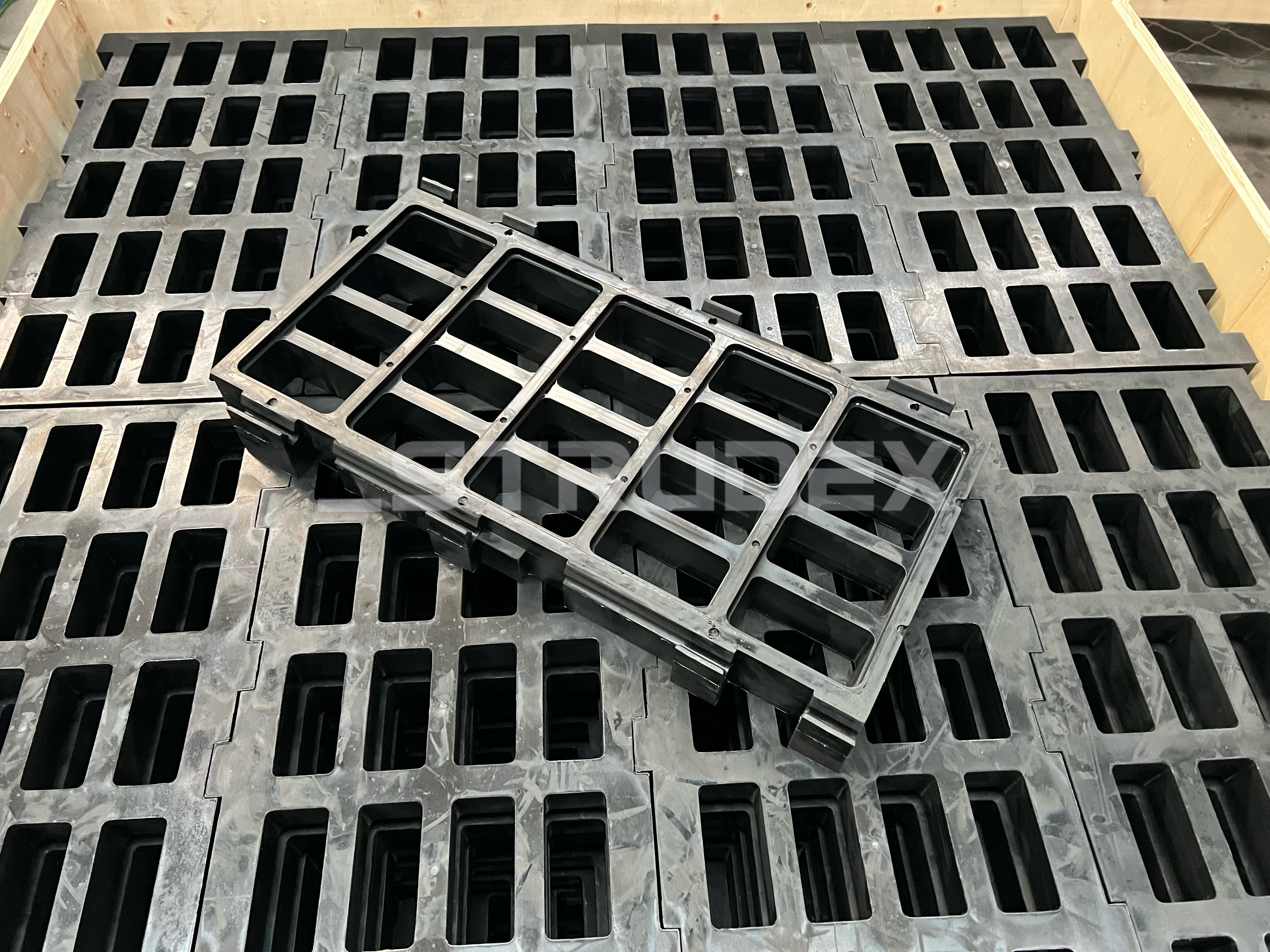

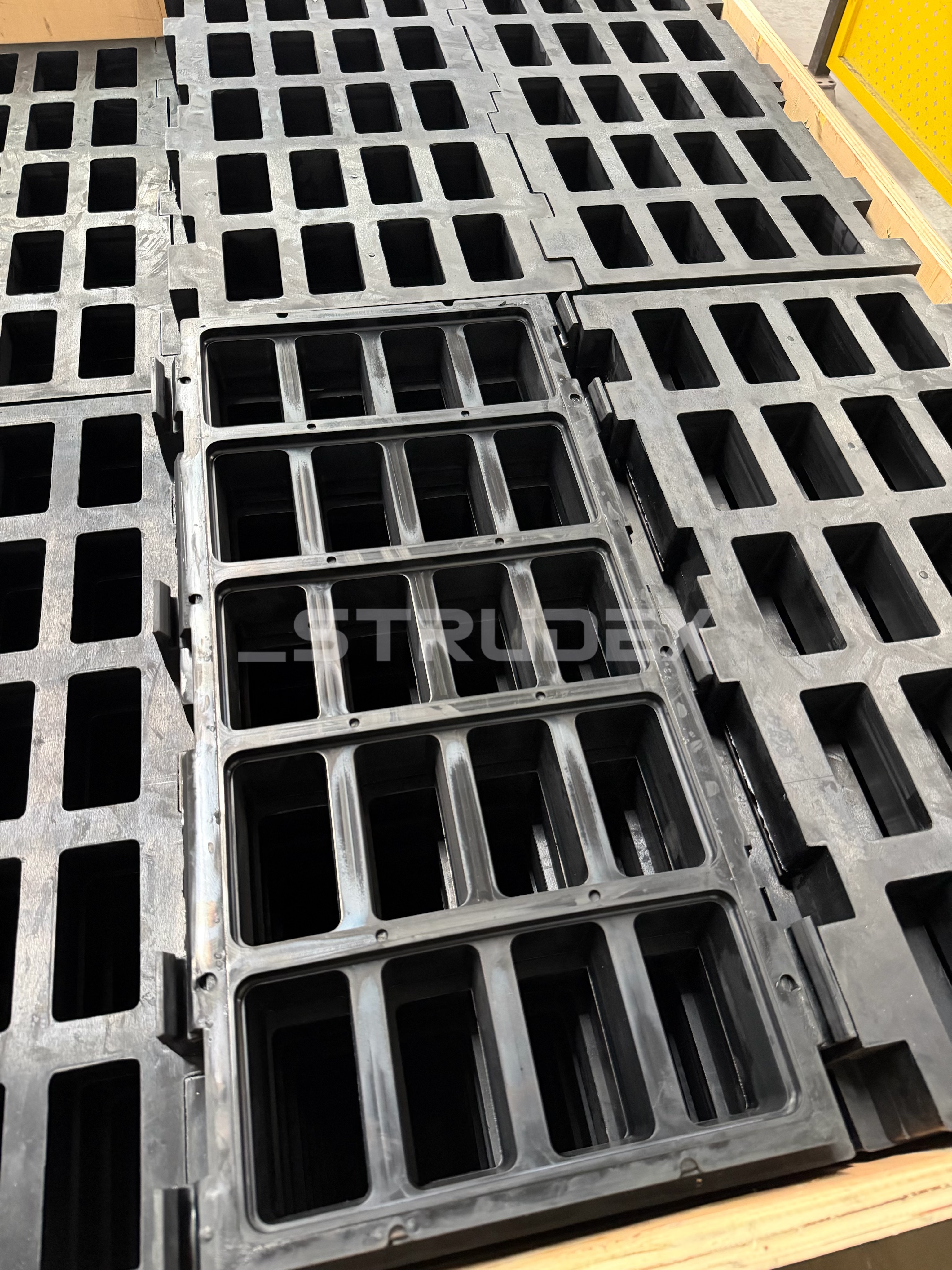

Snap-on retention makes the surface a defined deck component

The snap-on arrangement gives this panel a specific mechanical connection rather than a universal fitting standard. The ordered footprint, edge geometry and interface need to match the support. Full seating maintains the chosen surface at its intended level and helps control joints. An audible click or a matching top view should not substitute for checking that every required engagement region is correctly located.

1. Identify the actual mating profile with a section drawing and the panel’s installed position. This connects the 45 × 95 mm process configuration to the component needed by the machine.
2. Define thickness, external outline, edge regions and material-flow direction together. Where a sample is worn, distinguish original geometry from the consumed condition rather than reproducing enlarged openings or reduced edges.
3. Check the exposed support during renewal. Trapped material, worn contacts or damage can prevent correct seating and limit the benefit of a new rubber surface.
4. Verify neighboring joints and retention using the applicable equipment procedure. Unintended bypass at an edge affects the product by a different route from material passing through the selected apertures.

Judge the working configuration under representative feed

Gross opening area is only part of the screening opportunity. Blocked apertures, supports beneath them and a deep or uneven material bed can reduce the area that actually separates material. Relate these conditions to named positions on the deck. This helps determine whether a different rubber response or aperture arrangement is relevant, or whether the current surface is being denied useful exposure to the feed.

The practical benefit of a defined aperture and snap-on configuration is repeatability: a renewed panel can restore the accepted portion of the deck, and any deliberate change can be evaluated against a known starting point. Compare feed conditions and complete configurations, because a change in ore shape or moisture can influence the result independently of the rubber.

Specify the exact 45 × 95 mm aperture, orientation, complete panel drawing, thickness, rubber requirement and snap-on profile with the desired products and feed conditions. This preserves the identity of this variant while allowing the component geometry and material response to be selected for the actual duty. Related catalog sizes should remain separate until a process change is deliberately approved.

Product FAQ

Do the 45 × 95 mm dimensions describe the panel footprint?

They describe the screening apertures. The panel’s overall length, width, thickness and snap-on profile are separate dimensions that must be defined for the installation. Keep both the aperture specification and the full panel drawing on the purchase order to avoid confusing process sizing with mechanical fit.

Can either aperture dimension be treated as a guaranteed product cut?

Neither dimension alone establishes a sharp separation. Particle shape, orientation, near-size content and operating conditions influence passage through the opening. Compare the feed and both product streams with the required grading, and retain the opening orientation on the drawing when evaluating the configuration.

How is the opening orientation specified?

Identify the direction of both aperture dimensions relative to material flow on the approved panel drawing. Match that orientation to the installed support and attachment arrangement. A product photograph does not reliably establish the direction for a different deck or a replacement fitted at another position.

What establishes a correct snap-on fit for this panel?

The mating profile, engagement depth, edge geometry and support locations establish the mechanical fit. Inspect the rail and seating surfaces during changeout and verify all intended attachment points. Matching apertures or a similar overall footprint alone does not confirm that the connection is correctly engaged.
